big image

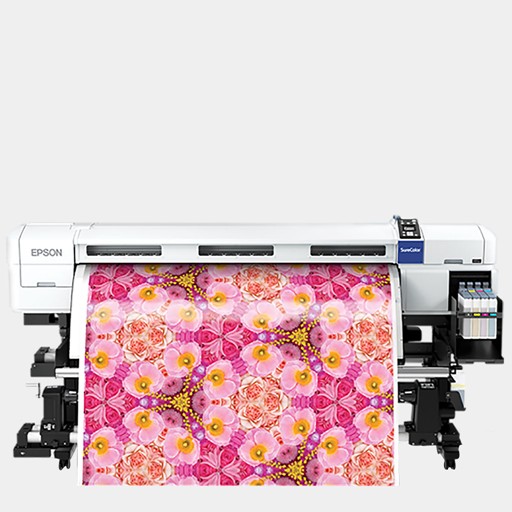

SureColor SC F7170

This product has 30 review(s) Add Review
Availability: Discontinued
Part no # C11CD72411

Epson Large Format Printers to deliver outstanding value in printing customer documents while using enough ink to maintain a reliable printing system that delivers outstanding print quality over the life of the printer.

CALL FOR PRICE

TRANSFORM EVERY CREATIVE POSSIBILITY INTO HIGH-QUALITY TEXTILE PRINTS Completely designed and manufactured by Epson, the SureColor F-Series brings never-before-seen reliability to the dye-sublimation transfer printing process for artificial, polyester-based fabrics. The specially formulated Epson UltraChrome DS Ink technology delivers superior quality transfer prints for application on to a wide range of media including sportswear, apparel, soft signage and customized promotional items.

Model Size 64"
Functions Print
Technology Advanced MicroPiezo TFP Print Head Variable-Sized Droplet Technology Nozzle Configuration: 720 nozzles per color (x4)
Print Direction Bi-directional and uni-directional
Speed Draft - 720x360 dpi, 1-pass 682 SFPH, High Speed - 720x720 dpi, 2-pass 324 SFPH, Max Quality - 1440x720 dpi, 8-pass 89 SFPH, High Quality - 1440x720 dpi, 6-pass 120 SFPH
Nozzle Configuration 720 nozzles per Color Enhanced Variable Droplet Technology as small as 5.3 picoliters
Resolution 720 x 1440 dpi
Ink Type Epson UltraChrome DS Ink technology
Ink Supply System nk Tank Capacity: 1500 ml, Ink Pack Capacity: 1000 ml, Cyan, Magenta, Yellow, Black
Roll Media Handling Paper Feed Method: Friction Auto Take-up Reel Unit: Standard with 64" model; Roll OD Dim.: 44" model: Up to 5.9" (3 in. core) ; 64" model: Up to 9.8" (3 in. core) Roll Core Size: 2" or 3" Roll Weight: Up to 88.18 lbs on 64" model
Media Weight Up to 88.18 lbs on 64" model
Media Thickness Over 75 gsm
Control Panel 2.5" Color LCD: 480 x 240 dpi
Interface Hi-Speed USB 2.0, 100BASE-TX/1000BASE-T
Voltage AC 100-240 V
Rated Frequency 50-60Hz
Power Consumption Operating: Approx. 65W, Sleep: Less than 3W, Ready: Approx. 20
Rated Current 0.5-1A
Environment Operating: 59 to 95 °F (15 to 35 °C); Recommended: 59 to 77 °F (15 to 25 °C)
Included Accessories Heavy Roll Media System (Optional on 64") Input / Output roll media diameter Up to 11.8", Input / Output roll media weight Up to 175 lb
Advanced Features Included RIP
Dimension 63"(W) x 32"(D) x 45"(H)
Weight 192 lb
Review is not available now!
To download flyer, brochure or specification of SureColor SC F7170 , click the on the buttons. (All documents are pdf format)
Brochure

TRANSFORM EVERY CREATIVE POSSIBILITY INTO HIGH-QUALITY TEXTILE PRINTS Completely designed and manufactured by Epson, the SureColor F-Series brings never-before-seen reliability to the dye-sublimation transfer printing process for artificial, polyester-based fabrics. The specially formulated Epson UltraChrome DS Ink technology delivers superior quality transfer prints for application on to a wide range of media including sportswear, apparel, soft signage and customized promotional items.
