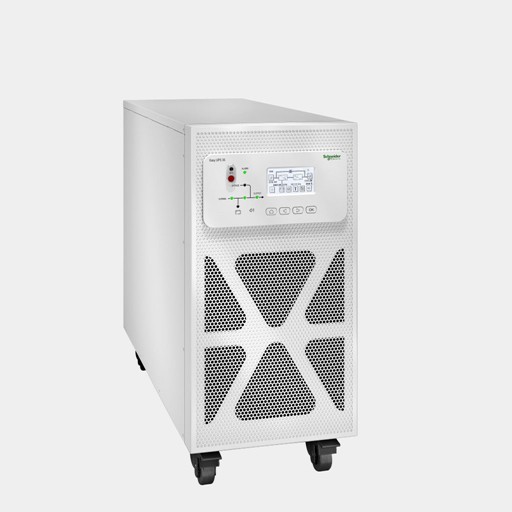

Schneider Electric 10 KVA Easy UPS 3S

This product has 30 review(s) Add Review
Availability: Call For Order
Part no #

The Schneider Electric Easy UPS 3S is an easy-to-install, easy-to-use, and easy-to-service 10 – 40 kVA 3-phase UPS ideal for small and medium businesses

CALL FOR PRICE

Easy UPS 3S supplies power stability with robust electrical specifiations and long-lasting performance to ensure your business continuity. Designed for fast and easy installation in the data center or electrical room, this EcoStruxure-ready UPS features a wide-operating temperature window and strong overload protection, all in a compact and lightweight footprint. These industry-leading features make Easy UPS 3S the easy choice for your business continuity.

Capacity 10KVA
Input Voltage 380/400/415 V (Three-phase + Neutral)
Output Voltage 3:1 (coming soon) – 220/230/240 V ; 3:3 – 380/400/415 V
Frequency 45 – 65 Hz
Voltage Range 304 V to 477 V at full load
Interface RS232, RS485, USB, Dry contact, Modbus TCP/IP, optional SNMP card
Protection IP20
Overload Capacity 125% for 10 minutes, 150% for 60 seconds
Control Panel Multi-function LCD, status and display console
Power Factor Up to 0.99
I THD/V THD <3.5% at full load
Environment Operating Temperature : 0°C to 40°C ; Operating Elevation : 0 to 1,000 m at 100% load
Relative Humidity 0 to 95% non-condensing
Noise Level 10 – 20 kVA: 60 dBA at 100% load; 30 – 40 kVA: 63 dBA at 100% load
Approvals Safety : IEC/EN62040-1-1 ; EMC/EMI/RFI : nIEC 62040-2 / Markings : CE RCM, EAC, WEEE
Dimension Low frame, unpackaged (H × W × D) :530 × 250 × 700 mm
Weight 36 kg
Review is not available now!
To download flyer, brochure or specification of Schneider Electric 10 KVA Easy UPS 3S , click the on the buttons. (All documents are pdf format)
Brochure

Easy UPS 3S supplies power stability with robust electrical specifiations and long-lasting performance to ensure your business continuity. Designed for fast and easy installation in the data center or electrical room, this EcoStruxure-ready UPS features a wide-operating temperature window and strong overload protection, all in a compact and lightweight footprint. These industry-leading features make Easy UPS 3S the easy choice for your business continuity.
