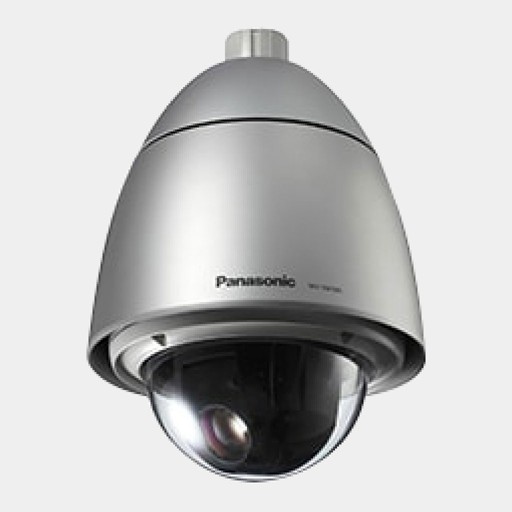

40x Intelligent Zoom Stabilization iA PTZ Camera.
Panasonic WV-X6511N captures the highest quality images automatically even in very challenging and fast-changing surveillance environments. Outstanding Intelligent Zoom Stabilization to increase visibility under blur condition. Intelligent Auto (iA) monitors scene dynamics and motion to adjust key camera settings automatically in real-time reducing distortion such as motion blur on moving objects. Adopting H.265 Smart Coding technology, intelligently reduces bandwidth efficiency of up to 95%* over H.264 for longer recording and less storage.
| Product Type | Security Camera |
| Body Material | Main body: Aluminum die cast, Natural silver; Sunshields : ABS+PC resin coating, Natural silver; Outer fixing screws : SUS (Corrosion-resistant treatment); Dome cover : Polycarbonate resin (with ClearSight coating (rain wash coating), Clear |
| Effective Pixels | 1.3 Megapixels; 16x Zoom; 40x Optical Zoom Ratio |
| Resolution | HD 1280x720 |
| Frame Rate | 60 fps |
| Signal to Noise Ratio | Extreme Super Dynamic 144dB |
| Lens Features | Shutter Speed: 1/30 Fix to 1/10000 Fix; |
| Angle of View | Horizontal : 2.1° (TELE) – 65° (WIDE) Vertical : 1.2° (TELE) – 39° (WID); Horizontal : 1.6° (TELE) – 51° (WIDE) Vertical : 1.2° (TELE) – 39° (WIDE) |
| Sensor | Approx. 1/2.8 type MOS image sensor |
| Compression Method | Audio: G.726 (ADPCM): 16 kbps / 32 kbps, G.711 : 64 kbps, AAC-LC : 64 kbps / 96 kbps / 128 kbps |
| Storage | Panasonic 2 GB, 4 GB, 8 GB, 16 GB, 32 GB, 64 GB, 128 GB 256 GB model SDHC card, SDXC card (except miniSD card and microSD card) |
| Network Interface | 10Base-T / 100Base-TX, RJ45 connector |
| I/O Ports | Input: ø3.5 mm stereo mini jack (monaural input) Input impedance: Approx. 2 k (unbalanced); Audio: ø3.5 mm stereo mini jack (monaural output) Output impedance : Approx. 600 (unbalanced) |
| Motion Detection Distance | On / Off, 4 areas available |
| Protocol | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ; IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP,SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP,ARP, IEEE 802.1X, DiffServ |
| Online Limit | Up to 14 users (Depends on network conditions) |
| Environment | –50 °C to +60 °C {–58 °F to +140 °F} (AC 24 V/ Tested PoE injector (60 W)) –30 °C to +60 °C {–22 °F to +140 °F}(PoE+ device) {Power On range: –30 °C to +60 °C (–22 °F to +140 °F)} |
| Power | AC24 V 3.4 A, Approx. 55 W |
| Power Consumption | PoE+ (IEEE802.3at compliant): DC 54V 470 mA, Approx. 25 W Tested POE Injector (60 W) : DC 54V 1.0 A, Approx. 50 W |
| Pan/Tilt | Wall & Ceiling Mount; Durable Pan/Tilt gear mechanism |
| Body Color | Silver |
| Advanced Features | Intelligent Auto; Gain (AGC), White balance; Color night vision (0.001 to 0.015 lx); IP66, IK10 certified; Water, Dust Resistance and Shock Resistance; |
| Dimension | Maximum ø229 mm × 393 (H) mm {ø9-1/32 inches × 15-15/32 inches (H)} |
| Weight | Approx. 5.2 kg {11.47 lbs} |
Panasonic WV-X6511N captures the highest quality images automatically even in very challenging and fast-changing surveillance environments. Outstanding Intelligent Zoom Stabilization to increase visibility under blur condition. Intelligent Auto (iA) monitors scene dynamics and motion to adjust key camera settings automatically in real-time reducing distortion such as motion blur on moving objects. Adopting H.265 Smart Coding technology, intelligently reduces bandwidth efficiency of up to 95%* over H.264 for longer recording and less storage.
