Sharp, Bright, Large-Screen Images; Solid Reliability and System Expandability.

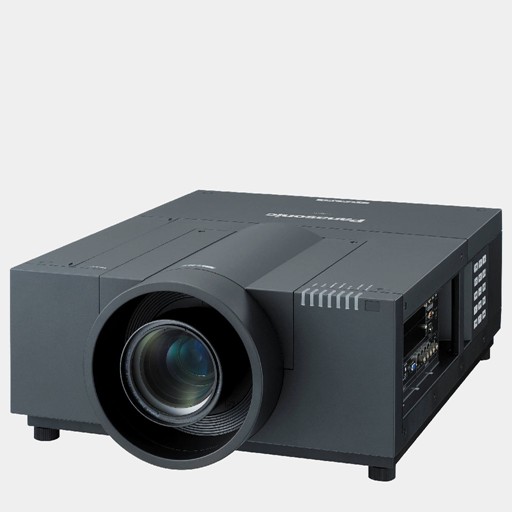

Balancing the factors required to fill large spaces with breathtaking images. The PT-EX12K render crisp, clear, large-screen images with the remarkable brightness of 13000 lm, respectively. Pure Color Control, which independently controls yellow brightness to improve color reproduction, attains this superb brightness with optimal coloring. And the Multi-Lamp Optical system maintains high reliability. System expansion functions include horizontal/vertical lens shift and a Multi-Screen Support system. These and other features enable flexible installation for a wide variety of applications.
| Projection Technology | Transparent LCD Panel (x3, R/G/B) |
| LCD Size | 46mm (1.8 inches) diagonal (4:3 aspect ratio); Display Method: Transparent LCD Panel (x3, R/G/B) |
| Image Size(Projected Distance) | 1.02-15.24m (40-600 inches) (2.54-15.24m (100-600 inches) with the ET-ELS03), 4:3 aspect ratio |
| Projector Lens | Transparent LCD Panel (x3, R/G/B) |
| Lamp Type | 380W x 2, Lamp replacement cycle (lamp power) Normal/Eco1, Eco2); 2000 hourse/3000 hours |
| Native Resolution | 786432 (1024 x 768) x 3, total of 2359296 pixels |
| Brightness | 13000 lm (4-lamps, lamp power: Auto/Normal, Optional lens: ET-ELS03) |
| Contrast Ratio | 4000:1 (full on/full off, 2-lamps, lamp power: Auto) |
| Noise Level | 42 dB (lamp power: Normal/Eco2), 39 dB (lamp power: Eco1) |
| Connectivity | HDMI/DVI-D, Serial In/Out; Remote in, LAN, USB |
| Environment | 0ºC-40ºC (32ºF-104ºF) (less than 1400 m 4593 ft); Humidity: 20-80% (no consdensation) |
| Power | 100-240V AC, 50-60 Hz; Consumption: 940 W (17W with Standby Mode) |
| Included Accessories | Power Cord x 1 (x2 for PT-EX16KE/EX12KE), power cord holder/power cord cover x 1Set, wriless/wired remote control unit, battiers (AAA/R03/LR03 type X 2, VGA cable x1, software CD-ROM (Logo tranfer Software, multi Projector Monitoring & Control Software, Real Color Manager Pro.), lens attachment x 1Set, lens lock lever fixing bracket x 1Set, lightshielding plate x 3Set, spacer x1set, cable tie x3. |
| Dimension | 538.6 x 268 x 757 mm (21.2"x10.6"x29.8") (with legs at shortest position, optional lens not included) |
| Weight | Approximately 28 kg (61.7 lbs) (optional lens not included) |
Balancing the factors required to fill large spaces with breathtaking images. The PT-EX12K render crisp, clear, large-screen images with the remarkable brightness of 13000 lm, respectively. Pure Color Control, which independently controls yellow brightness to improve color reproduction, attains this superb brightness with optimal coloring. And the Multi-Lamp Optical system maintains high reliability. System expansion functions include horizontal/vertical lens shift and a Multi-Screen Support system. These and other features enable flexible installation for a wide variety of applications.
