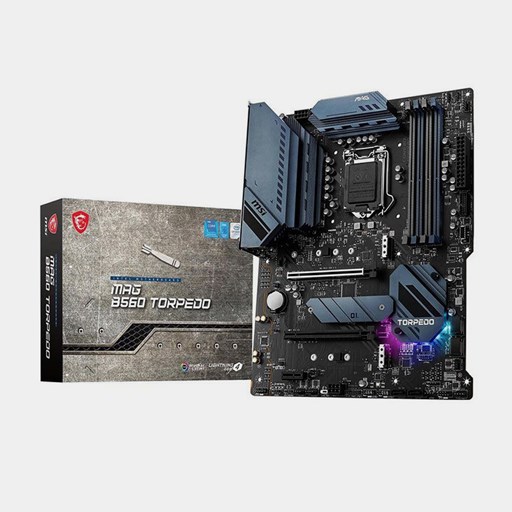

MSI MAG B560 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard
MSI MAG B560 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard features high-bandwidth and low-latency 2.5G plus Gigabit LAN for power users. This Motherboard has Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.
| Brand | MSI |
| Socket | 1200 |
| CPU Support | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors1 |
| Chipset | Intel B560 Chipset |
| Memory | DDR4; 128 GB |
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz; 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
| Multi-GPU Support | Supports 2-Way AMD® CrossFire™ Technology |
| Storage Interface | 6x SATA 6Gb/s ports (from B560 chipset); 3x M.2 slots (Key M); M2_1 slot (from CPU) |
| LAN Interfaces | 1x Realtek RTL8125B 2.5Gbps LAN controller; 1x Intel I219V 1Gbps LAN controller |
| Audio | 7.1-Channel High Definition Audio Supports S/PDIF output |
| USB Port/Cable | 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel) 1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 Type-A ports available through the internal connector) 4x USB 2.0 ports on the back panelG Hub-GL850G 4x USB 2.0 ports available through the internal connectors |
| I/O Ports | 1x Front panel audio connector; 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector; 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) |
| OS Compatibility | Support for Windows® 10 64-bit |
| Form Factor | ATX Form Factor |
| Dimension | 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
MSI MAG B560 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard features high-bandwidth and low-latency 2.5G plus Gigabit LAN for power users. This Motherboard has Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.
