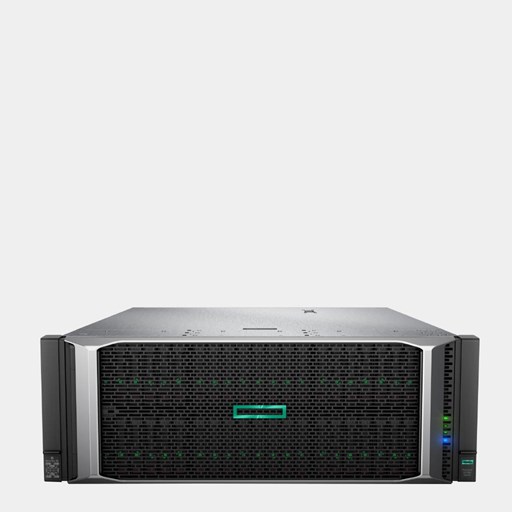

The HPE ProLiant DL580 Gen10 Server is a high-density, four-socket server with high performance, scalability and reliability, all in a 4U chassis.
Supporting the latest Intel® Xeon® Scalable processors, the HPE ProLiant DL580 Gen10 Server offers greater processing power, up to 6 TB of faster memory, IO of up to sixteen PCIe 3.0 slots, plus the intelligence and simplicity of automated management with HPE OneView and HPE iLO 5. The 869854-B21 stands for HPE ProLiant DL580 Gen10 8SFF Configure-to-order Server.
| Country of Origin | USA |
| Processor | 4U Server Chassis with 2 processor slots available; 4 processor configuration would require optional HPE ProLiant HPE DL5x0 Gen10 CPU Mezzanine Board Kit (872222-B21) |
| Chipset | Intel C621 |
| Memory | 32 X 32 GB |
| Primary Storage | 4 X 600GB HDD |
| Storage Controller | HPE Smart Array S100i |
| Network Interface | SATA 6Gb/s |
| Optical Drive | Drive Type: Internal |
| System Fan(s) | 12 hot plug fans, (n+1) redundant |
| Expansion Slots | DIMM Slots : 24 DIMM slots for RDIMM, LRDIMM DDR4 Memory; 48 DIMM configuration would require optional HPEProLiant HPE DL5x0 Gen10 CPU Mezzanine Board Kit (872222-B21) and 4 processors |
| OS Compatibility | Microsoft Windows Server, Red Hat Enterprise Linux |
| Form Factor | DIMM 288-pin ; Rack-mountable - 4U |
| Connectivity | 1 x serial (1 rear) | 1 x VGA (1 rear) | 2 x HP iLO | 2 x USB 2.0 (2 rear) | 5 x USB 3.0 (1 front, 2 rear, 2 internal) |
| Environment | Min Operating Temperature : 50 °F ; Max Operating Temperature : 95 °F ; Humidity Range Operating : 10 - 90% (non-condensing) |
| Feature 01 | HPE iLO Standard with Intelligent Provisioning and (Standard); HPE OneView Standard (requires download) and HPE iLO Advanced (require additional licenses), HPE iLO Advanced Premium Security Edition (require additional licenses), HPE OneView Advanced (require additional licenses) |
| Feature 02 | None. FlexibleLOM slot (various options can be chosen for networking; NIC cards also available via expansion slots) |
| Feature 03 | 16 (total) / 16 (free) x PCIe 3.0 x16 | 1 (total) / 1 (free) x FlexibleLOM | 1 (total) / 1 (free) x microSD Card |
