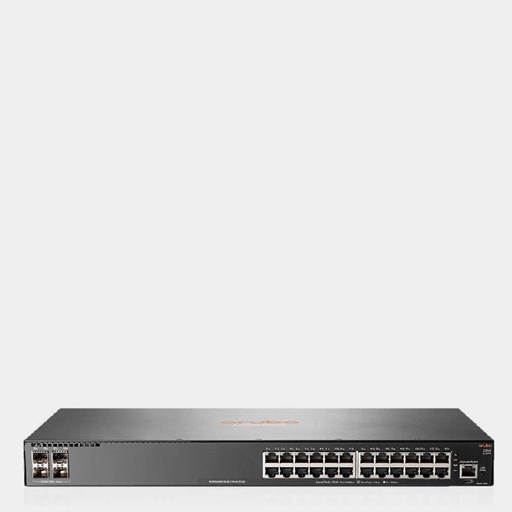

HPE ARUBA 2540 24G 4SFP+ SWITCH
Designed for the digital workplace, the Aruba 2540 Switch Series is optimized for today’s mobile and IoT needs. The switches are easy to deploy, use and manage using Aruba AirWave or Aruba Central. Aruba ClearPass offers centralized security and external captive portal support.
| Ethernet/RJ-45 Ports | 24 RJ-45 autosensing 10/100/1000 ports |
| SFP/Uplink Port | 10BASE-T/100BASE-TX: half or full; 4 SFP+ 1/10GbE ports; |
| Throughput | up to 95.2 Mpps |
| Switching Capacity | 128 Gbps |
| MAC Address | 16,384 entries |
| Memory | Dual Core ARM® Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5 MB Ingress/7.875 MB Egress, 4 GB eMMC |
| Power | 100–127/200–240 VAC, rated |
| Environment | Operating temperature : 32°F to 113°F (0°C to 45°C); up to 5,000 Feet,-0°C to 40°C (32°F to 104°F) up to 10,000 Feet ; Operating relative humidity : 15% to 95% @ 104°F (40°C), noncondensing ; Nonoperating/Storage temperature : -40°F to 158°F (-40°C to 70°C); up to 15,000 Feet |
| Safety | UL 60950-1, 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013; IEC 60950-1:2005 +A1:2009 +A2:2013; CSA 22.2 No. 60950-1-07 2nd; EN 60825-1:2007/IEC 60825-1:2007 Class 1 |
| Advanced Features | VCCI Class A; CNS 13438; ICES-003 Class A; FCC CFR 47 Part 15, Class A; EN 55022: 2010/CISPR-22, Class A |
Designed for the digital workplace, the Aruba 2540 Switch Series is optimized for today’s mobile and IoT needs. The switches are easy to deploy, use and manage using Aruba AirWave or Aruba Central. Aruba ClearPass offers centralized security and external captive portal support.
