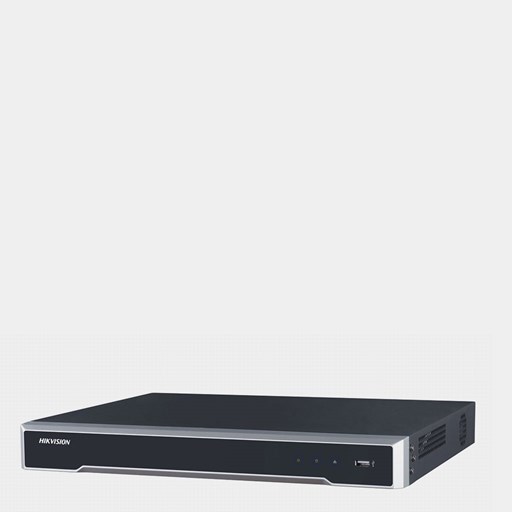

32-CH 1U 4K NVR
Up to 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
| Product Type | 32 Chenel Network Video Recorder |
| Resolution | HDMI Output Resolution : 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| Storage | 12TB |
| System Requirements | Incoming Bandwidth 256 Mbps ; Outgoing Bandwidth 160 Mbps |
| Alarm | Alarm In/Out : 4/1 |
| Recording / Playback Mode | Recording Resolution : 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Connectivity | SATA : 2 SATA interfaces ; Capacity : Up to 10 TB capacity for each HDD ; USB Interface : Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 ; Alarm In/Out : 4/1 |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Network Protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Input | Audio Input : 1-ch, RCA (2.0 Vp-p, 1 KΩ) ; IP Video Input : 32 Channel |
| Output | Audio Output : 1-ch, RCA (Linear, 1 KΩ) ; Audio Output Channel : 1-channel, RCA (Linear, 1K omega) |
| Power | Power Supply : 12 VDC, 3.33 A |
| Power Consumption | ≤ 15 W (without HDD) |
| Audio Signal Format | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Environment | Working Temperature : -10 °C to 55 °C (14 °F to 131 °F) ; Working Humidity : 10 to 90 % |
Up to 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
