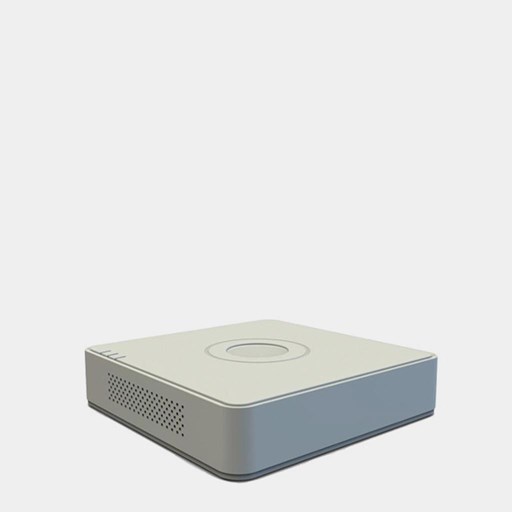

16-CH 1080p Mini 1U H.265 DVR
8 channels and 1 HDD mini size DVR
| Product Type | Digital Video Recorder |
| Resolution | When 1080p Lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
| System Requirements | Video Bitrate : 32 Kbps to 6 Mbps ; Dual-stream : Support ; Stream Type : Video, Video & Audio ; Audio Compression : G.711u ; Audio Bitrate : 64 Kbps |
| Alarm | Alarm In/Out :N/A |
| Frame Rate | Main stream: When 1080p Lite mode is not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps ; For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) ; When 1080p Lite mode is enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) ; Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
| Connectivity | SATA : 1 SATA interface ; Capacity : Up to 6 TB capacity for each disk ; USB Interface : Real panel: 2 × USB 2.0 |
| Network Interface | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Input | IP Video Input : 2-ch (up to 18-ch) Enhanced IP mode on: 8-ch (up to 24-ch), each up to 4 Mbps ; Up to 6 MP resolution ; Support H.265+/H.265/H.264+/H.264 IP cameras ; Analog Video Input : 16-ch ; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection ; HDTVI Input : 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 ; The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1, channel 1/2 of DS-7108HQHI-K1, and channel 1/2/3/4 of DS-7116HQHI-K1. ; AHD Input : 4 MP, 1080p25, 1080p30, 720p25, 720p30 ; HDCVI Input : 4 MP, 1080p25, 1080p30, 720p25, 720p30 ; CVBS Input : Support |
| Output | HDMI Output : 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ; VGA Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Power | 12 VDC, 1.9 A |
| Power Consumption | 15 W |
| Environment | Working Temperature : -10 °C to +55 °C (+14 °F to +131 °F) ; Working Humidity : 10% to 90% |
| Advanced Features | Incoming Bandwidth : 96 Mbps ; Audio Input : 1-ch, RCA (2.0 Vp-p, 1 KΩ) 16-ch via coaxial cable ; Audio Output : 1-ch, RCA (Linear, 1 KΩ) |
| Dimension | (W × D × H)285 × 210 × 45 mm |
| Weight | 1 kg (2.2 lb) |
8 channels and 1 HDD mini size DVR
