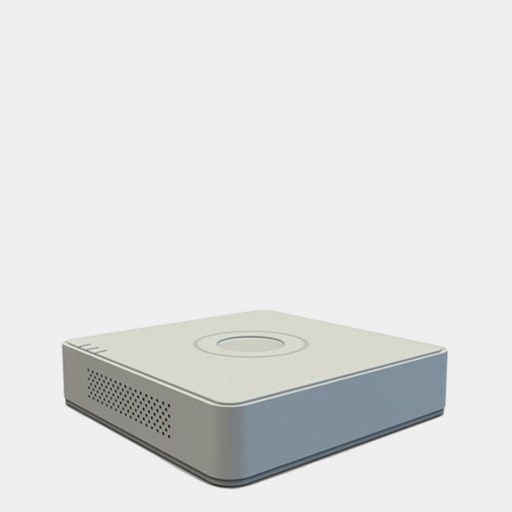

8-CH 1080p Mini 1U H.265 DVR
Efficient H.265 pro+ compression technology
| Product Type | Digital Video Recorder |
| Display | Plastic |
| Resolution | When 1080p Lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
| Frame Rate | Main stream: When 1080p Lite mode is not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ; For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps ; For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) ; For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) ; When 1080p Lite mode is enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) ; Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
| Connectivity | SATA : 1 SATA interface ; Capacity : Up to 6 TB capacity for each disk ; Alarm In/Out : N/A ; USB Interface : Real panel: 2 × USB 2.0 |
| Network Interface | 1, RJ45 10M/100M self-adaptive Ethernet interface |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Power | 12 VDC, 1.33 A |
| Power Consumption | ≤ 12 W |
| Environment | Working Temperature : -10 °C to +55 °C (+14 °F to +131 °F) ; Working Humidity : 10% to 90% |
| Advanced Features | Video Bitrate : 32 Kbps to 6 Mbps ; Dual-Stream : Support ; Stream Type : Video, Video & Audio ; Audio Compression : G.711u ; Audio Bitrate : 64 Kbps |
Efficient H.265 pro+ compression technology
