2 MP Indoor Fixed Turret Camera

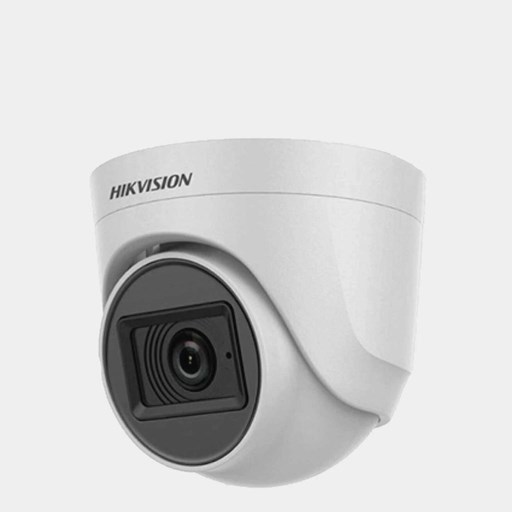

HikVision DS-2CE76D0T-ITPF 2 MP Indoor Fixed Turret Camera
| Product Type | HikVision DS-2CE76D0T-ITPF |
| Body Material | Plastic |
| Connectivity | Video Output: Dual video output: BNC & twisted-pair cable port |
| Effective Pixels | Focal Length : 2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°°, vertical FOV: 30°, diagonal FOV: 58.8° |
| Resolution | 1920 (H) × 1080 (V) |
| Luminance | Min. Illumination : 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Frame Rate | TVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC |
| Lens Features | 2.8 mm, 3.6 mm fixed focal lens ; Lens Mount : M12 |
| Angle of View | Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360° |
| IR Features | IR Range : Up to 20 m |
| Environment | -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation) |
| Power | 12 VDC +- 25% |
| Power Consumption | Max. 3 W |
| Advanced Features | Day/Night Mode: Auto/Color/BW (Black and White) ; Wide Dynamic Range (WDR): Digital WDR |
HikVision DS-2CE76D0T-ITPF 2 MP Indoor Fixed Turret Camera
