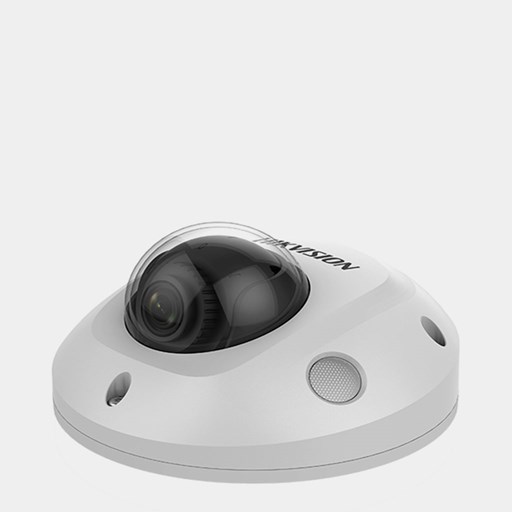

4 MP Outdoor WDR Fixed Mini Dome Network Camera
Clear imaging against strong back light due to 120 dB true WDR technology
| Product Type | Audio IP-Camera |
| Effective Pixels | 4 MP |
| Resolution | 2688 × 1520 |
| Luminance | IR RangeUp to 10 m ; Wavelength : 850 nm |
| Audio | Environment Noise Filtering : Yes ; Audio Sampling Rate : 16 kHz, 32kHz, 44.1kHz, 48kHz ; Audio Compression : G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM ;Audio Bit Rate : 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Lens Features | 2.8, 4, 6 mm ; Aperture : F1.6 ; Lens Mount : M12 |
| Angle of View | Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360° |
| Sensor | 1/3" Progressive Scan CMOS |
| Storage | Support MicroSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets |
| Power | 12 VDC ± 25% PoE (802.3af, class 3) |
| Power Consumption | 12 VDC, 0.7 A, max. 8.5 W, Ø5.5mm coaxial plug power |
| Advanced Features | Wi-Fi : Encryption Mode : -W: WPA, WPA2 ; Wi-Fi Protocol : -W: IEEE 802.11b/g/n ; Frequency Range : -W: 2.412 GHz to 2.4835 GHz ; Channel Bandwidth -W: 20 MHz ; Transfer Rate : -W- 11b: 11 Mbps, 11g: 54 Mbps, 11n: up to 150 Mbps ; Wireless Range-W: Up to 50 m (The performance varies based on actual environment) |
| Focal Length | 2.8 mm, horizontal FOV: 98°, vertical FOV: 55°, diagonal FOV: 114° ; 4 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 93° ; 6 mm, horizontal FOV: 48°, vertical FOV: 27°, diagonal FOV: 54° |
| Shutter | Shutter Speed : 1/3 s to 1/100,000 s ; Slow Shutter : Yes |
Clear imaging against strong back light due to 120 dB true WDR technology
