Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.

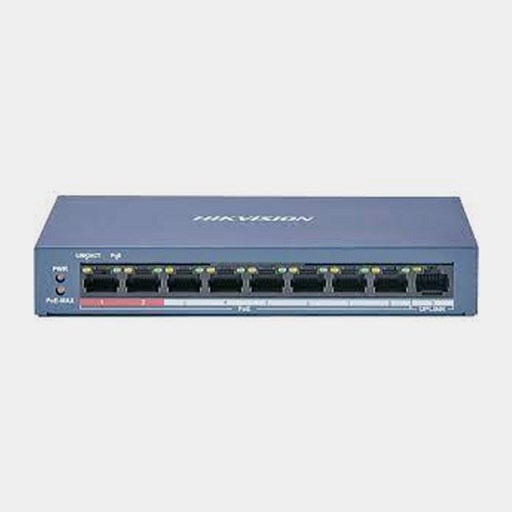

| Model | DS-3E0105P-E-M |
| WAN/LAN Ports | 8 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port |
| Ethernet/RJ-45 Ports | RJ45 port, full duplex, MDI/MDI-X adaptive |
| Switching Capacity | 1.8 Gbps |
| MAC Address | 2 K |
| Memory | Internal Cache 1 Mbits |
| Power | 48 VDC, 0.8 A |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Environment | Operating Temperature: –10 °C to 55 °C (14 °F to 131 °F) |
| Form Factor | Metal material, fan-free design |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) |
| Weight | 0.89 kg (1.96 lb) Gross |
| Dimension | (W × H × D) 170 mm × 27.6 mm × 93.1 mm (6.7” × 1.1” × 3.7”) |
Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.
