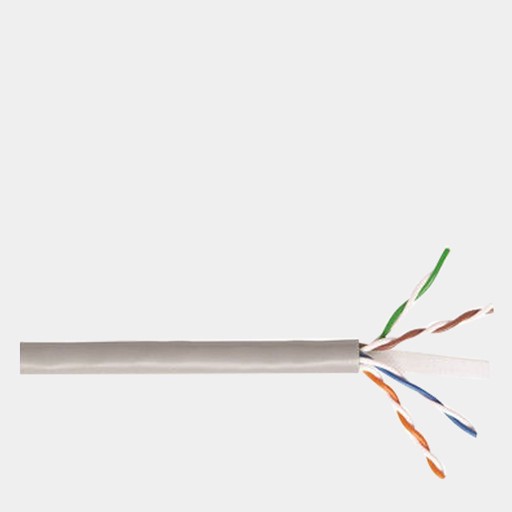

The CommScope cables provide excellent high-speed transmission using parallel transmission scheme technology.
Transmits reliable voice, data and video with excellent quality of service The 71E series GigaSPEED XL family of unshielded twisted pair cables includes the 1071E non-plenum, 2071E plenum, and 3071E low smoke zero-halogen (LSZH) cables. These cables feature bi-sector tape that delivers the performance benefits of more traditional fluted center members, without the associated stiffness and size. Combine this with the GigaSPEED XL apparatus, for the ultimate in cabling system performance.
| Product Type | Cable |
| Brand | GigaSPEED XL | SYSTIMAX |
| Country of Origin | USA |
| Cable Type | U/UTP (unshielded) |
| Conductor Type | Solid; Gauge: 23 AWG; 8 Pcs |
| ANSI/TIA Category | 6 |
| Resistance | 7.61 ohms/100 m; Unbalance DC : 5 % |
| Pulling Tension | Max. 11 kg | 25 lb |
| Frequency | Operating : 300 MHz |
| Materials | Conductor: Bare copper; Insulation: Polyolefin; Jacket: Low Smoke Zero Halogen (LSZH) |
| Color | Jacket: White |
| Cable Length | 305 m | 1000 ft |
| Environment | Environmental Space: Low Smoke Zero Halogen (LSZH); Flame Test Method: IEC 60332322; Installation Temperature : 0 °C to +60 °C (+32 °F to +140 °F); Operating Temperature: 20°C to +60 °C (4°F to +140 °F) |
| Weight | Cable: 25.00 lb/kft |
| Voltage | 80 V |
| Dimension | Dia over Jacket : 5.918 mm | 0.233 in; Thickness: 0.508 mm | 0.020 in |
Transmits reliable voice, data and video with excellent quality of service The 71E series GigaSPEED XL family of unshielded twisted pair cables includes the 1071E non-plenum, 2071E plenum, and 3071E low smoke zero-halogen (LSZH) cables. These cables feature bi-sector tape that delivers the performance benefits of more traditional fluted center members, without the associated stiffness and size. Combine this with the GigaSPEED XL apparatus, for the ultimate in cabling system performance.
