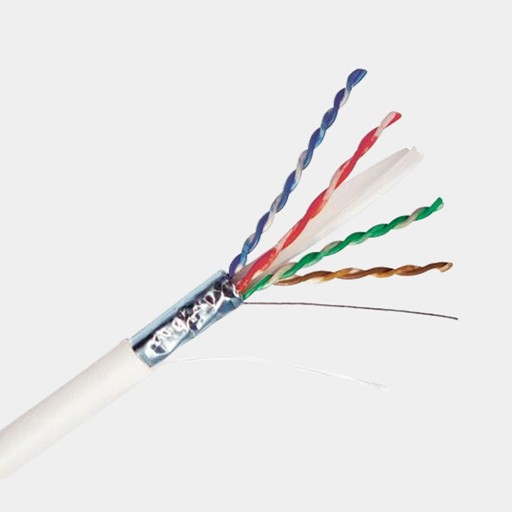

GigaSPEED X10D 1291B ETL Verified Category 6A F/UTP Cable

This product has 30 review(s) Add Review
Availability: Call For Order
Part no # 760081398

The CommScope cables provide excellent high-speed transmission using parallel transmission scheme technology.

CALL FOR PRICE

Part of the next generation SYSTIMAX 360™ solutions platform The SYSTIMAX® 360 GigaSPEED® X10D 91B series U/UTP cable has been redesigned with a smaller diameter, making it the smallest Category 6A cable on the market today. Using SYSTIMAX’s innovative Optimized Material Technology (OMT) platform, not only reduces the cable’s core, but optimizes transmission performance, giving network managers increased rack space and airflow without succumbing to alien crosstalk.

Product Type Cable
Brand GigaSPEED XL | SYSTIMAX
Country of Origin USA
Cable Type F/UTP (shielded)
Conductor Type Solid; Gauge: 23 AWG; 8 Pcs
ANSI/TIA Category 6
Resistance 8.00 ohms/100 m; Unbalance DC : 4 %
Pulling Tension Max. 11 kg | 25 lb
Frequency Operating : 550 MHz
Materials Conductor: Bare copper; Insulation: FEP; Jacket: Low Smoke Zero Halogen (LSZH); Shield: Polyester/Aluminum shield
Color Jacket: Slate
Cable Length 305 m | 1000 ft
Environment Environmental Space: Nonplenum; Flame Test Method: CMR; Installation Temperature: 0 °C to +60 °C (+32 °F to +140 °F); Operating Temperature: 20°C to +60 °C (4°F to +140 °F)
Weight Cable: 35.00 lb/kft
Voltage 80 V
Dimension Dia over Jacket : 7.518 mm | 0.296 in; Thickness: 0.508 mm | 0.020 in
Review is not available now!
To download flyer, brochure or specification of GigaSPEED X10D 1291B ETL Verified Category 6A F/UTP Cable , click the on the buttons. (All documents are pdf format)
Brochure

Part of the next generation SYSTIMAX 360™ solutions platform The SYSTIMAX® 360 GigaSPEED® X10D 91B series U/UTP cable has been redesigned with a smaller diameter, making it the smallest Category 6A cable on the market today. Using SYSTIMAX’s innovative Optimized Material Technology (OMT) platform, not only reduces the cable’s core, but optimizes transmission performance, giving network managers increased rack space and airflow without succumbing to alien crosstalk.
