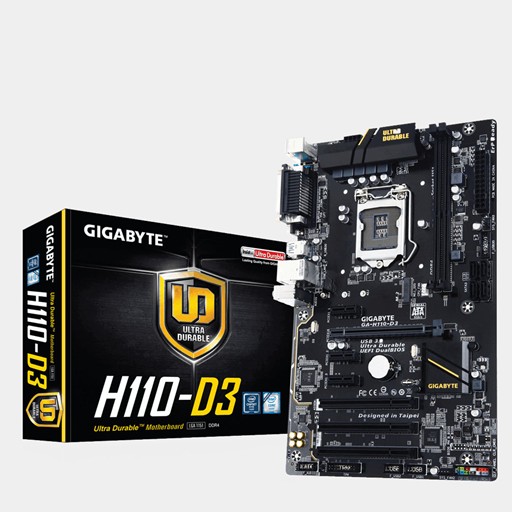

Gigabyte H110 Motherboard

This product has 30 review(s) Add Review
Availability: Discontinued
Part no #

GIGABYTE motherboards bring together a unique blend of features and technologies that offer users the absolute ultimate platform for their next PC build.

৳ 6,000

GIGABYTE 100 series motherboards support the latest 6th Generation Intel® Coreâ„¢ processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR3/ DDR3L memory, bringing cutting edge features and ultimate performance to your next PC build.

Brand Gigabyte
Socket LGA1151 Socket
CPU Support Pentium, Celeron, Core i5, Core i3, Core i7
Chipset Intel H110 Express
Memory Max. : 32 GB; Allocated RAM Size: 512 MB; dual channel memory architecture; Bus Clock: 2133 MHz; Unbuffered; DDR4
Graphics graphics adapter (CPU required)
Expansion Slots 1 x CPU; 2 x DIMM 288-pin; 1 x PCIe 3.0 x16; 2 x PCIe 2.0 x1;
Storage Interface SATA-600 -connectors: 4 x 7pin Serial ATA - 4 devices
LAN Interfaces Ethernet, Fast Ethernet, Gigabit Ethernet
Audio Realtek ALC887; High Definition Audio (8-channel)
USB Port/Cable Plug and Play, ACPI 5.0; USB 3.0; 2 x USB 3.0 + 4 x USB 2.0; 4 x 7pin Serial ATA; SPDIF out, USB 2.0, USB 3.0, audio, serial
Back Panel Ports Connector Type: mini-jack ; 24-pin main power connector, 8-pin ATX12V connector; DVI-D, HDMI, LAN (Gigabit Ethernet), PS/2 keyboard, PS/2 mouse, USB 2.0, USB 3.0, VGA, audio line-in, audio line-out, microphone
I/O Ports 4 x USB 2.0 - header; 2 x USB 3.0 - header; 1 x audio - header; 1 x SPDIF out - header; 1 x serial - header; 2 DIMM slots
H/W Monitoring CPU core temperature, CPU fan tachometer, CPU overheating protection, chassis fan tachometer, chassis temperature, system voltage
BIOS AMI; Features: ACPI 5.0 support, DMI 2.7 support, Dual BIOS, SMBIOS 2.7 support, UEFI BIOS, WfM 2.0 support
Supported Softwares @BIOS, Cloud Station, EasyTune, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, GIGABYTE Smart Keyboard, GIGABYTE USB Blocker, Norton Internet Security, Smart TimeLock, Xpress Install, cFosSpeed
Form Factor micro ATX
Dimension Width: 8.9 in X Depth: 6.9 in
Review is not available now!
To download flyer, brochure or specification of Gigabyte H110 Motherboard , click the on the buttons. (All documents are pdf format)
Brochure

GIGABYTE 100 series motherboards support the latest 6th Generation Intel® Coreâ„¢ processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR3/ DDR3L memory, bringing cutting edge features and ultimate performance to your next PC build.
