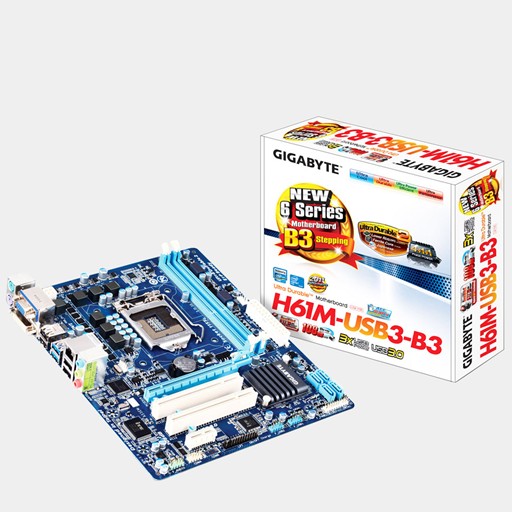

Gigabyte GA-H61M-USB3-B3 Motherboard

The GIGABYTE motherboard is fully configured to provide gamers with the latest Gen.3 PCI Express technology, delivering maximum data bandwidth for forthcoming discrete graphics cards.

Brand	Gigabyte
Socket	LGA1155 Socket
CPU Support	Pentium, Celeron, Core i5, Core i3, Core i7
Chipset	Intel H61 Express
Memory	Max. 16 GB; dual channel memory architecture; 1333 MHz, 1066 MHz, 800 MHz; DDR3; Non-ECC
Graphics	graphics adapter (CPU required)
Expansion Slots	1 x CPU; 2 x DIMM 240-pin (1.5 V); 1 x PCIe x16; 1 x PCIe x1; 2 x PCI
Storage Interface	SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices
LAN Interfaces	Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet; Network Controller: Atheros AR8151; Network : Gigabit Ethernet
Audio	Realtek ALC889 ; High Definition Audio (8-channel)
USB Port/Cable	USB 3.0; 2 x USB 3.0 + 4 x USB 2.0
Back Panel Ports	Connector Type: mini-jack; 4-pin ATX12V connector, 24-pin main power connector; DVI-D, LAN (Gigabit Ethernet), PS/2 keyboard, PS/2 mouse, USB 2.0, USB 3.0, VGA, audio line-in, audio line-out, microphone
I/O Ports	1 x audio; 2 x USB 2.0; 1 x parallel; 1 x serial; 2 DIMM slots
H/W Monitoring	CPU core temperature, CPU fan tachometer, chassis fan tachometer, chassis temperature, system voltage; Feature: 3x USB Power Boost, 4 Phase Power Design, AutoGreen, DualBIOS, On/Off Charge, Q-Flash, Smart 6, Ultra Durable 2
BIOS	Award; ACPI 1.0b support, DMI 2.0 support, Hybrid EFI Technology, SMBIOS 2.4 support
Supported Softwares	@BIOS, Cloud OC, EasyTune, Norton Internet Security, Q-Share, Xpress Recovery 2
OS Compatibility	Compatible with Windows 7 software and devices carry Microsofts assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Form Factor	micro ATX
Power Consumption	Voltage: 1.5 V
Dimension	W:9.6in X Depth:8.1 in

Review is not available now!

To download flyer, brochure or specification of Gigabyte GA-H61M-USB3-B3 Motherboard , click the on the buttons. (All documents are pdf format)

Brochure

The GIGABYTE motherboard is fully configured to provide gamers with the latest Gen.3 PCI Express technology, delivering maximum data bandwidth for forthcoming discrete graphics cards.
