Epson Point-of-sale (POS) products and services for the retail, food service, banking, healthcare and airline industries.

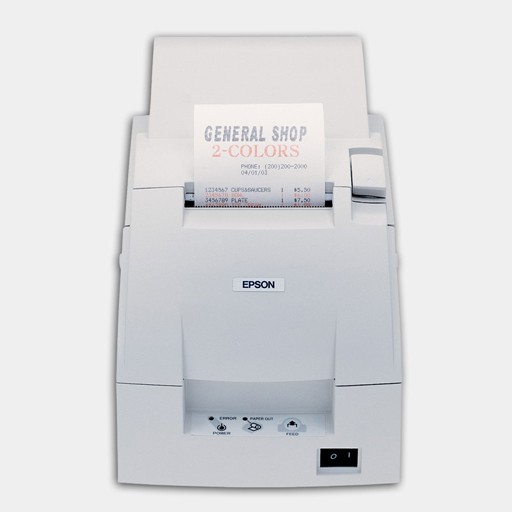

The TM-U220 printers are designed to be compatible with existing systems built around a TM-U210. These systems can be upgraded simply by dropping in a TM-U220. Moreover, since the external dimensions are nearly identical, there is no need to change the installation environment. The transition to the new model is as smooth as can be.
| Product Type | Epson POS DOT Printers |
| Print Method | 9-pin serial impact dot matrix |
| Font | 7 x 9 / 9 x 9 |
| Column Capacity | Paper width 76 mm, 33 / 40 |
| Character Size | 1.6 mm (W) x 3.1 mm (H) / 1.2 mm (W) x 3.1 mm (H) |
| Character Sets | 95 Alphanumeric, 48 International, 128 x 12 Graphic |
| Characters Per Inch | 13.3 cpi / 16 cpi |
| Interface | Bi-directional parallel, Drawer kick-out, RS-232, USB, 10 Base-T I/F |
| Buffer | 4 KB or 40 bytes |
| Print Speed | 4.7 lps (at 40 columns, 16 cpi), 6.0 lps (at 30 columns, 16 cpi) |
| MTBF | 18 x 104 hours |
| Media Thickness | 0.06 to 0.085 |
| Capability | One original and one copy Capability |
| Supported Consumables | Printer Ribbon |
| Duty Cycle | 7,500,000 lines |
| Power | AC adapter (included) |
| Power Supply | PS-180 (option); |
| Power Consumption | 24V |
| Safety | UL / CSA / TÜV (EN60950) |
| Advanced Features | Wall-hanging bracket WH-10 |
| Compatible Printers | Epson UB-U09, UB-U04, UB-U03II,UB-U02III,UB-U01LLL, UB-S09, UB-P02II, Ps-180 |
| Dimension | 160 x 248 x 139 mm (W x D x H) |
| Weight | 2.7 kg |
The TM-U220 printers are designed to be compatible with existing systems built around a TM-U210. These systems can be upgraded simply by dropping in a TM-U220. Moreover, since the external dimensions are nearly identical, there is no need to change the installation environment. The transition to the new model is as smooth as can be.
