Enjoy cost savings, superior print quality and minimal downtime with a MTBF of up to 25,000 POH.

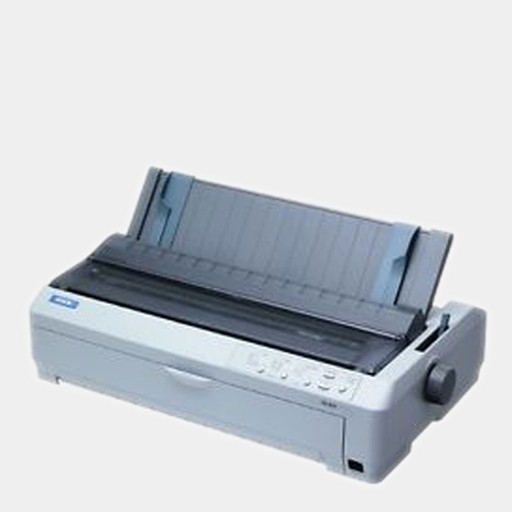

Discover a new way to print all business documents with Epson’s FX-2190II, FX-2190IIN, FX-2175II and FX-2175IIN dot matrix printers. Designed to deliver absolute performance and reliability, these powerful printers offer blazing print speeds of up to 615cps and an MTBF (Mean Time Before Failure) of up to 25,000 POH (Power On Hours). With the built-in network connectivity* function, printing effi ciently is achieved in the most convenient way
| Functions | |
| Technology | Impact dot matrix |
| Number of Pins | 9 pins |
| Speed | Ultra Speed Draft : 10cpi, 496cpi , High Speed Draft: 10cpi, 496cpi, Draft : 10cpi, 372cpi |
| MTBF | 15,000 Power On Hours (POH) (25% Duty) |
| Print Head Life | 200 million strokes/wire |
| Character Sets | 1 Italic and 12 graphical character tables: Italic table, PC437 (US, StandardEurope), PC850 (Multilingual), PC860 (Portuguese), PC861 (Icelandic), PC865 (Nordic), PC863 (Canadian-French), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC858, ISO 8859-15 |
| Supported Bitmap Fonts | Epson Draft : 10, 12, 15 cpi ; Epson Roman / Epson Sans Serif : 10, 12, 15 cpi, Proportional |
| Supported Scalable Fonts | Epson Roman / Epson Sans Serif |
| Barcode Sets | EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET |
| Media Cut Sheet | Cut Sheet (Single Sheet) Entry- Front : Length -100 - 420 mm , Width-100 - 420 mm, Thickness-0.065 - 0.14 mm ; Entry: Rear,Length - 100- 420 mm , Width- 100- 420 mm, Thickness-0.065 - 0.14 mm |
| Envelopes Media | No.6 : Length :92 mm , Width : 165 mm , Thickness : 0.16 - 0.52 mm ; No.10 : Length :105 mm, Width : 241 mm , Thickness : 0.16 - 0.52 mm |
| Continuous Paper | Length :101.6 - 558.8 mm , Width : 101.6 - 406.4 mm , Thickness : 0.065 - 0.39 mm |
| Multipart Copy | Original + 4 copies |
| Print Direction | Bi-direction with logic seeking |
| Memory | 128 kb |
| Supported Consumables | Ribbon Cartridge (Black) : 12 million Characters C13S015584 |
| Interface | USB 2.0, Bi-directional parallel (IEEE-1284 nibble mode supported) Serial, 100 base-Tx wired LAN |
| Control Panel | 6 switches and 10 LEDs |
| Voltage | AC 220 - 240 V |
| Rated Frequency | 50 Hz - 60 Hz |
| Power Consumption | Operating : 54W , Sleep Mode : 0.8W , Power Off : 0.1W in power off mode |
| OS Compatibility | Microsoft Windows XP / Vista / 7 / 8 / 10 |
| Environment | Temperature: 5 - 35 °C x 2 ; Humidty : 10 - 80% RH x 2 |
| Dimension | 675 x 375 x 176 mm (Width x Depth x Height) |
| Weight | 9.4kg (20.8lbs) |
Discover a new way to print all business documents with Epson’s FX-2190II, FX-2190IIN, FX-2175II and FX-2175IIN dot matrix printers. Designed to deliver absolute performance and reliability, these powerful printers offer blazing print speeds of up to 615cps and an MTBF (Mean Time Before Failure) of up to 25,000 POH (Power On Hours). With the built-in network connectivity* function, printing effi ciently is achieved in the most convenient way
