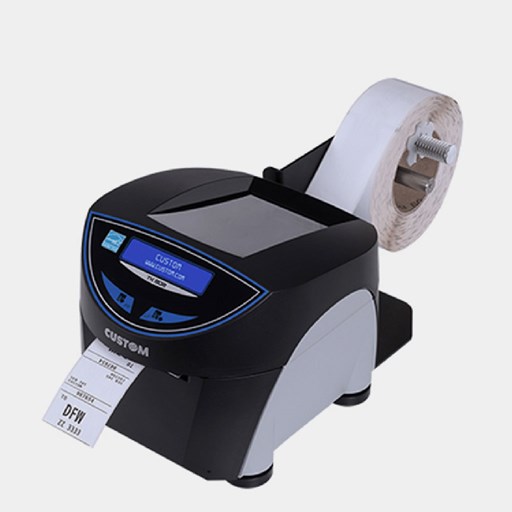

CUSTOM PRCT TK202III USB RS232 DSP AERO,E01 PRINTER

It is blazingly fast at up to 200 millimetre per second on 20mm wide baggage tags, 82.5mm wide boarding passes, and anything in between. Media weights from 80 to 255 grams per square metre can be processed as standard. Native AEA firmware allows for effortless integration into Common Use Terminal Systems (CUTE) and Common Use Passenger Processing Systems (CUPPS) and the two line display aids easy user operation.The automatic sensor calibration activates every time paper is loaded, reducing media wastage to practically zero, a great environmental and cost benefit.

Product Type	Boarding Pass and Baggage Tag Printer
Print Method	Thermal with fixed head
Character Sets	Latin, Cyrillic, Chinese
Interface	RS232 / USB
Print Speed	200mm/sec
Roll Media Handling	Paper Width : from 20mm to 82.5mm (2mm step)
Media Thickness	Paper weight : from 80 to 255 g/m²
Power Supply	24Vdc ± 10%; Auto Range, 90-132 Vac & 190-264 Vac
Dimension	(Lx Hx W) 252.1 x 192.6 x 216 mm [ Roll Dimension : max 300mm
Weight	4 Kg
