You can upgrade these Fast Ethernet switches to Gigabit Ethernet switches without impairing their functions.
The Cisco Catalyst 2960-L Series Switches are ideal for the replacement of the existing Cisco Catalyst Switches, especially Cisco Catalyst 2960-C/SF/S/Plus Series LAN Lite models.

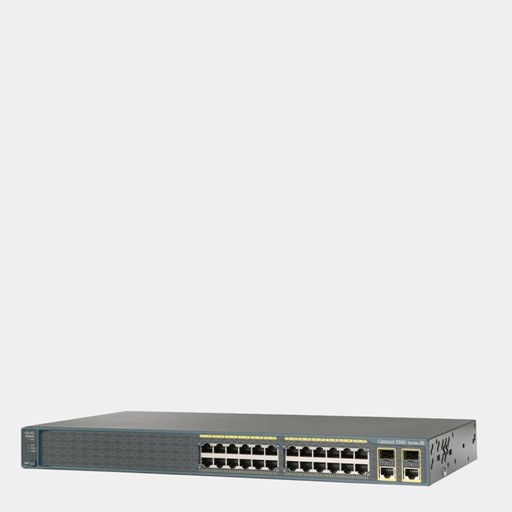

| Model | WS-C2960-24TC-S Cisco 2960 Switch |
| WAN/LAN Ports | 24 10/100 ports |
| Ethernet/RJ-45 Ports | RJ45 Console Port |
| SFP/Uplink Port | 2 dual-purpose (10/100/1000 or SFP) ports |
| Throughput | 6.5 Mpps |
| VLAN | active VLANs, Value : 64 |
| MTBF | 667000 sec |
| Power | Nominal Voltage : AC 120/230 V, Frequency Required : 50/60 Hz, Power Consumption Operational : 18.6 Watt, Type : internal power supply |
| Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP) |
| Protocol | Remote Management Protocol :HTTP, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, TFTP, Telnet |
| Environment | Humidity Range Storage : 10 - 95% (non-condensing), Min Storage Temperature : -13 °F, Max Storage Temperature : 158 °F, Min Operating Temperature : 23 °F,Max Operating Temperature : 104 °F , Humidity Range Operating : 10 - 95% (non-condensing) |
| Connectivity | |
| Advanced Features | Fan Exhaust, RPS Connector,AC power connector ; ARP support, BOOTP support, LLDP support, Link Aggregation Control Protocol (LACP), MAC Address Notification, Management Information Base (MIB), Multiple Spanning Tree Protocol (MSTP) support, Port Aggregati |
| Weight | 7.94 lbs |
| Dimension | (WxDxH) 17.7 x 9.5 x 1.7 in |
The Cisco Catalyst 2960-L Series Switches are ideal for the replacement of the existing Cisco Catalyst Switches, especially Cisco Catalyst 2960-C/SF/S/Plus Series LAN Lite models.
