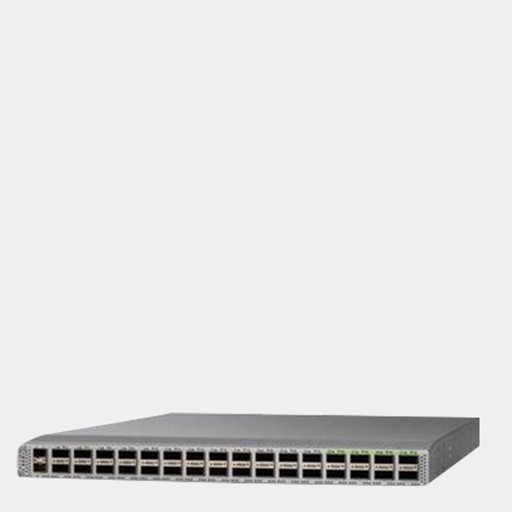

N9K-C9332C is the Nexus 9332C ACI Spine switch with 32p 40/100G QSFP28, 2p 1/10G SFP.
The Cisco Nexus 9332C is the smallest form-factor 1-Rack-Unit (1RU) spine switch for Cisco ACI that supports 6.4 Tbps of bandwidth and 2.3 bpps across 32 fixed 40/100G QSFP28 ports and 2 fixed 1/10G SFP+ ports. Breakout is not supported on ports 1 to 32. The last 8 ports marked in green support wire-rate MACsec encryption.
| Country of Origin | USA |
| Model | N9K-C9332C |
| WAN/LAN Ports | 32-port 40/100G QSFP28 ports & 2-port 1/10G SFP+ ports |
| Combo Ports SFP | 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+) |
| Support PoE | 100 Megabit Ethernet and 1/10 Gigabit Ethernet speeds |
| Slots | 1 RS-232 serial console ports |
| Bandwidth | 2.4 Tbps |
| Switching Capacity | 480-Gbps |
| VLAN | 4096 |
| Memory | System memory: 16 GB ; SSD: 256GB |
| MTBF | 363,500 hours |
| Power | 1100 watt (W) AC, DC or HVAC/HVDC power supplies (up to 2) ; Input voltage: 100 to 240V* AC or -40V to -72V DC (min‑max), -48V to -60V DC (nominal) ; Typical power: 296W (AC) ; Maximum power: 700W (AC) |
| Packet Buffer | 40MB |
| Interface | USB: 1 port |
| Environment | Operating temperature: 32 to 104°F (0 to 40°C) ; Nonoperating (storage) temperature: -40 to 158°F (-40 to 70°C); Humidity: 5 to 85% (noncondensing); Altitude: 0 to 13,123 ft (0 to 4000m) |
| Certification | RoHS compliance, Hot swappable |
| Safety | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, GB4943 |
| Advanced Features | Acoustics : Fan speed at 50%: 76.4 dBA , Fan speed at 70%: 83.3 dBA, Fan speed at 100%: 92.1 dBA |
| Weight | 25.1lb (11.4kg) with power supplies and fans |
| Dimension | (H x W x D): 1.7 x 17.3 x 22.9 in |
The Cisco Nexus 9332C is the smallest form-factor 1-Rack-Unit (1RU) spine switch for Cisco ACI that supports 6.4 Tbps of bandwidth and 2.3 bpps across 32 fixed 40/100G QSFP28 ports and 2 fixed 1/10G SFP+ ports. Breakout is not supported on ports 1 to 32. The last 8 ports marked in green support wire-rate MACsec encryption.
