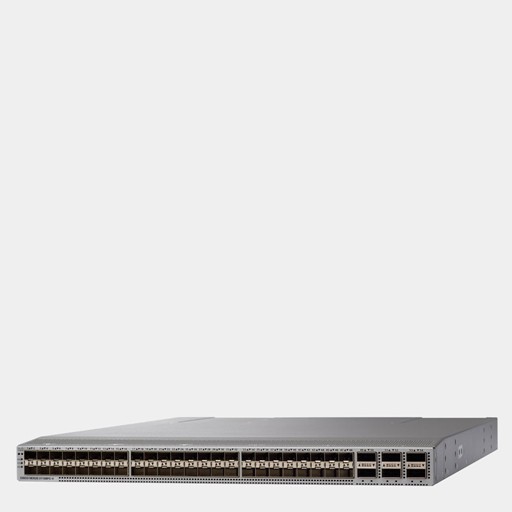

CISCO NEXUS 9300 WITH 48P 10/25G,SFP+ AND 6P 100G QSFP28 SWITCH

This product has 30 review(s) Add Review
Availability: Pre-order Product
Part no # N9K-C93180YC-EX

Cisco delivers a comprehensive portfolio of switching solutions for Enterprise Networks, data centers, and smaller businesses and the public sector.

Corporate/Service Product

The Cisco Nexus 93180YC-EX Switch (Figure 1) is a 1 -Rack-Unit (1RU) switch with latency of less than 1 microsecond that supports 3.6 Terabits per second (Tbps) of bandwidth and over 2.6 billion packets per second (bpps). The 48 downlink ports on the 93180YC-EX can be configured to work as 1 -, 10-, or 25-Gbps ports, offering deployment flexibility and investment protection. The uplink can support up to six 40- and 100-Gbps ports, or a combination of 1 -, 10-, 25-, 40-, 50-, and 100-Gbps connectivity, offering flexible migration options. The switch has FC-FEC enabled for 25Gbps, and supports upto 3m in DAC connectivity

WAN/LAN Ports 48 x 10/25-Gbps and 6 x 40/100- Gbps QSFP28 ports
Ethernet/RJ-45 Ports 2 ports: 1 RJ-45 and 1 SFP
SFP/Uplink Port 6 uplinks ports
Support PoE 48 Port
Throughput 3.6 (Tbps)
Memory System memory - 24 GB , SSD drive - 64 GB
MTBF 390,330 hours
Power Typical power (AC/DC) : 210 W , Maximum power (AC/DC) : 470 W , Input voltage (AC) : 100 to 240V , Input voltage (high-voltage AC [HVAC]) : 200 to 277V , Input voltage (DC) : –48 to –60V , Input voltage (high-voltage DC [HVDC]) : –240 to –380V
Network 1/10/25-Gbps Ethernet, 8/16/32-Gbps Fibre Channel
Buffer 40 mb
Environment perating temperature : 32 to 104°F (0 to 40°C) , Nonoperating (storage) temperature : –40 to 158°F (–40 to 70°C) , Humidity : 5 to 95% (noncondensing) ,Altitude : 0 to 13,123 ft (0 to 4000m)
Form Factor Desktop
Safety NEBS : UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, GB4943
Weight 17.4 lb (7.9 kg)
Dimension (H x W x D) 1.72 x 17.3 x 22.5 in
Review is not available now!
To download flyer, brochure or specification of CISCO NEXUS 9300 WITH 48P 10/25G,SFP+ AND 6P 100G QSFP28 SWITCH , click the on the buttons. (All documents are pdf format)
Flyer
Brochure

The Cisco Nexus 93180YC-EX Switch (Figure 1) is a 1 -Rack-Unit (1RU) switch with latency of less than 1 microsecond that supports 3.6 Terabits per second (Tbps) of bandwidth and over 2.6 billion packets per second (bpps). The 48 downlink ports on the 93180YC-EX can be configured to work as 1 -, 10-, or 25-Gbps ports, offering deployment flexibility and investment protection. The uplink can support up to six 40- and 100-Gbps ports, or a combination of 1 -, 10-, 25-, 40-, 50-, and 100-Gbps connectivity, offering flexible migration options. The switch has FC-FEC enabled for 25Gbps, and supports upto 3m in DAC connectivity
