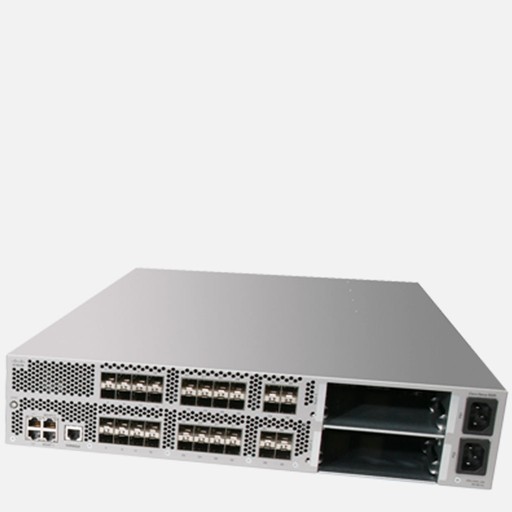

Cisco Nexus 5000 Series Switches

This product has 30 review(s) Add Review
Availability: Pre-order Product
Part no # n5k-c50

Cisco delivers a comprehensive portfolio of switching solutions for Enterprise Networks, data centers, and smaller businesses and the public sector.

Corporate/Service Product

Today’s data centers are increasingly filled with dense rack-mount and blade servers that host powerful multicore processors. The rapid increase in in-rack computing density and the increasing use of virtualization software combine to accelerate the demand for 10 Gigabit Ethernet and consolidated I/O: applications for which the Cisco Nexus® 5000 Series Switches are an excellent match. With low latency, front-to-back cooling, and rear-facing data ports, the Cisco Nexus 5000 Series is designed for a broad range of physical, virtual, storage access, and high- performance computing environments, thus giving customers the flexibility to meet and scale their data center requirements in a gradual manner and at a pace that aligns with their business objectives.

Country of Origin USA
Model Cisco Nexus 2148T
WAN/LAN Ports 1 and 10 Gigabit Ethernet and FCoE
SFP/Uplink Port 10-Gbps SFP
Support PoE 32 fixed Ports
Forwarding Rate 714.24 mpps
MAC Address 32,000
VLAN VLAN Spanning Tree Plus (PVRST+) (IEEE 802.1w compatible)
Jumbo Frames 9216 bytes
MTBF Cisco Nexus 5548P/5548UP Fan Module, Front-to-Back Airflow, Spare
Power Power : 390W, Maximum power (Layer 2): 600W (without Layer 3 daughter card), Input Voltage: 100 to 240 VAC, Frequency: 50 to 60 Hz, Efficiency: 95 to 98% (50 to 100% load),, Heat Dissipation: 1998 BTU/hr
Standards IEEE 802.1D: Spanning Tree Protocol, IEEE 802.1p: CoS prioritization, IEEE 802.1Q: VLAN tagging, IEEE 802.1Qaz: Enhanced transmission selection, IEEE 802.1Qbb: Per-priority Pause, IEEE 802.1s: Multiple VLAN instances of Spanning Tree Protocol, IEEE 802.1w
Protocol Link Aggregation Control Protocol (LACP): IEEE 802.3ad, Data Center Bridging Exchange (DCBX) Protocol: Simplifies network deployment and reduces configuration errors by providing autonegotiation of DCB, features between the NIC and the switch and between
Connectivity 16-port 1/10GE Ethernet/FCoE module (Requires SFP+ for 8Gbps or SFP for 4Gbps operation)
Cabling Type Cable: Twinax, Distance: 5m, Power (Each Side): Approximately 0.1W, Transceiver Latency (Link): Approximately 0.1 microsecond, Standard: SFF-8431
Safety UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, GB4943
Environment Temperature: 0 to 40°C, nonopearting: 40 to 70°C, Humidity: 5 to 95% (noncondensing), Altitude: 0 to 10,000 ft (0 to 3000m)
System Requirements Cisco Nexus 5000 Base OS Software Release 5.0(2)N1(1)
Weight 35 lb (15.88 kg)
Dimension (HxWxD) : 1.72 x 17.3 x 29.5 in. (4.4 x 43.9 x 74.9 cm)
Review is not available now!
To download flyer, brochure or specification of Cisco Nexus 5000 Series Switches , click the on the buttons. (All documents are pdf format)
Flyer
Brochure

Today’s data centers are increasingly filled with dense rack-mount and blade servers that host powerful multicore processors. The rapid increase in in-rack computing density and the increasing use of virtualization software combine to accelerate the demand for 10 Gigabit Ethernet and consolidated I/O: applications for which the Cisco Nexus® 5000 Series Switches are an excellent match. With low latency, front-to-back cooling, and rear-facing data ports, the Cisco Nexus 5000 Series is designed for a broad range of physical, virtual, storage access, and high- performance computing environments, thus giving customers the flexibility to meet and scale their data center requirements in a gradual manner and at a pace that aligns with their business objectives.
