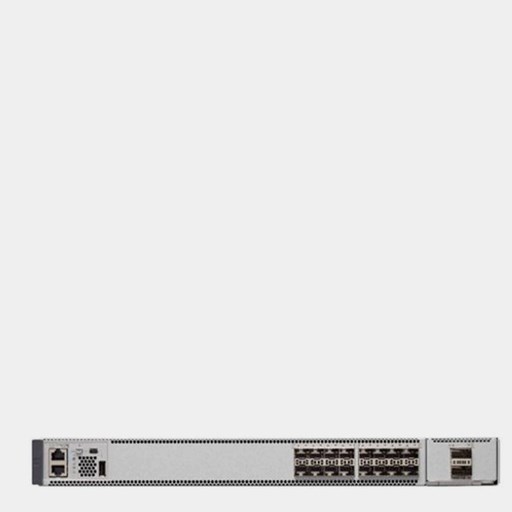

Cisco Catalyst C9500-16X-A-Switch

Based on an x86 CPU, the Catalyst 9500 Series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry's first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.

Model	9500
Ethernet/RJ-45 Ports	16 x 10Gbit LAN RJ-45, 2 x 10GBase-X SFP+
Standards	IEEE 802.1ae, IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x
Power	Internal power supply ; Power Provided : 950 watt ; Nominal Voltage : AC 120/230 V ; Frequency Required : 50 - 60 hertz
Protocol	Remote Management Protocol : NETCONF, RESTCONF, RMON 1, RMON 2, SNMP, SNMP 1, SNMP 3, TFTP
Advanced Features	Forwarding rate: up to 360 Mpps, Switching capacity (full duplex): up to 480 Gbps
System Requirements	FNF entries: 512000, Host IPv4 routes: 80000, Host IPv6 routes: 40000, Indirect IPv4 routes: 64000, Indirect IPv6 routes: 32000, Multicast scale: 16000, QoS ACL scale: 18000, Security ACL scale: 18000, Switched virtual interfaces (SVIs): 4000, VLAN IDs: 4000

Review is not available now!

To download flyer, brochure or specification of Cisco Catalyst C9500-16X-A-Switch , click the on the buttons. (All documents are pdf format)
