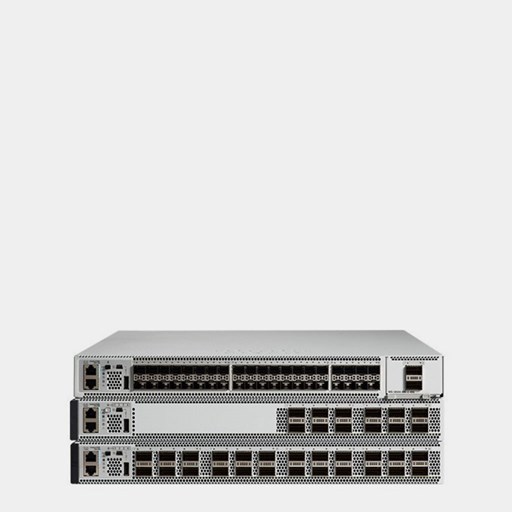

C9500-16X-E is a Cisco Catalyst 9500 16-port 10G switch, NW Ess. License.
The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry's first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.
| WAN/LAN Ports | Cisco Catalyst 9500 16-port 10G switch, NW Ess. License |
| SFP/Uplink Port | 8 x 1/10 G or 2 x 40 G uplinks |
| Forwarding Rate | Up to 360 Mpps |
| Switching Capacity | Up to 240 Gbps |
| Memory | DRAM 16 GB ; Flash 16 GB |
| Jumbo Frames | 9198 bytes |
| MTBF | 315,790 (hours) |
| Power | 90 to 264 VAC ; 950 W |
| Routing | Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) : Up to 64,000 indirect , Up to 80,000 host ; Total number of IPv6 routes : Up to 32,000 indirect , Up to 40,000 host |
| Environment | Operating temperature : 32° to 104°F (0° to 40°C) ; Storage temperature : -4° to 149°F (-20° to 65°C) |
| Dimension | (H x W x D) 1.73 x 17.5 x 21.52 in |
The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry's first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.
