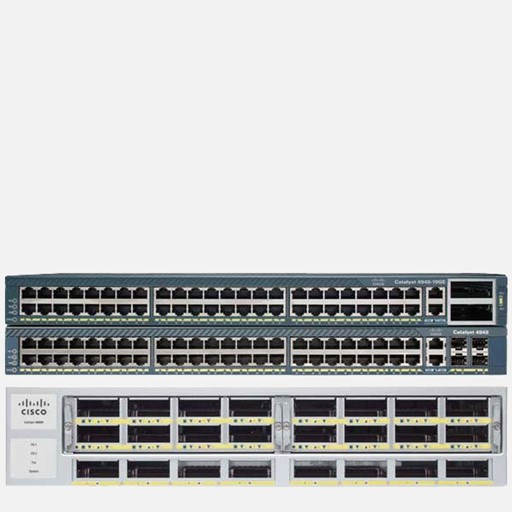

Cisco Catalyst 4900M Series Switches

This product has 30 review(s) Add Review
Availability: Pre-order Product
Part no # ws-c4900m

Cisco delivers a comprehensive portfolio of switching solutions for Enterprise Networks, data centers, and smaller businesses and the public sector.

Corporate/Service Product

The Cisco Catalyst 4900M switch is the first switch optimized for UPE aggregation based on Cisco Catalyst 4900 Series technology. It provides the line-rate performance required to deliver data, voice, and video services to thousands of subscribers simultaneously. Service providers have the choice of uplinking to a 10 GE or 1 GE backbone using a variety of Small Form-Factor Pluggable (SFP) and X2 optic types.

Country of Origin USA
Ethernet/RJ-45 Ports Gigabit Ethernet: IEEE 802.3z and 802.3ab
SFP/Uplink Port Four SFP ports and two X2 ports with support of Cisco Gigabit EtherChannel® technology
MAC Address 55,000
VLAN Support for 4096 active VLANs and 4096 VLAN IDs per switch
Memory CPU speed: 266 MHz, Flash memory: 64 MB, Synchronous dynamic RAM (SDRAM): 256 MB
Jumbo Frames 9216 bytes
Power Input Current 4A at 110V, 2A at 220 V, Output Current: 25A at 12 VDC, Heat Dissipation: 1023 BTU/hour
Packet Buffer Dynamic, 16-MB shared memory
Protocol Dynamic Trunking Protocol (DTP)
Safety UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950, IEC 60825-1, IEC 60825-2, EN 60825-1, EN 60825-2, 21 CFR 1040
Environment Temperature: Operating: 0 to 40ºC, Storage: –40 to 75ºC, Relative humidity: 10 to 90 percent, noncondensing, Operating altitude: –60 to 2000m
System Requirements The Cisco ME 4924 is supported only in Cisco IOS® Software and is not supported in Cisco Catalyst OS Software. The minimum software release is Cisco IOS Software Release 12.2(31)SGA or later.
Weight 2.0 kg
Dimension WXDXH: 17.290X16.14X1.712 in. Weight: 16.5 lb (7.48 kg) with one power supply
Warranty The warranty for the Cisco ME 4924 is a one-year limited hardware warranty; it includes hardware replacement with a 10-day turnaround from receipt of a return materials authorization (RMA).
Review is not available now!
To download flyer, brochure or specification of Cisco Catalyst 4900M Series Switches , click the on the buttons. (All documents are pdf format)
Flyer
Brochure

The Cisco Catalyst 4900M switch is the first switch optimized for UPE aggregation based on Cisco Catalyst 4900 Series technology. It provides the line-rate performance required to deliver data, voice, and video services to thousands of subscribers simultaneously. Service providers have the choice of uplinking to a 10 GE or 1 GE backbone using a variety of Small Form-Factor Pluggable (SFP) and X2 optic types.
