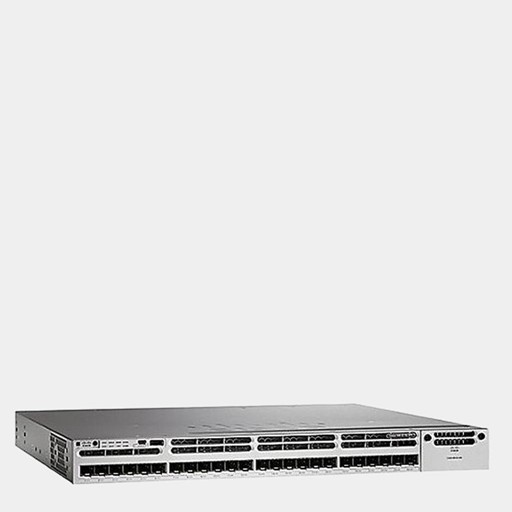

CISCO CATALYST 3850 24 PORT 10G, FIBER SWITCH IP BASE

Cisco next generation Catalyst WS-C3850-24XS-E is stackable enterprise level switch and integrated with 24 ports of SFP+ 10G Ethernet fiber connection with Flexible Netflow feature. It offers IP Services feature set.

Country of Origin	USA
Model	2960-X
Software Type	Cisco IOS LAN Base
WAN/LAN Ports	24 × 10/100/1000 10G SFP+ Optical ports
Ethernet/RJ-45 Ports	USB (Type-B), Ethernet (RJ-45)
Slots	1 network module slot and 1 power redundant slot
Bandwidth	Switching Bandwidth : 216Gbps ; Stack bandwidth : 480 Gpbs
Forwarding Rate	Forwarding Performance: 130.9Mpps
MAC Address	32K
Memory	Flash Memory: 4gb, RAM: 4gb
Jumbo Frames	9216 bytes
MTBF	277,960 hours
Power	45.7 Watt ; 100V-240V
Standards	EEE 802.1D Spanning Tree Protoco, IEEE 802.1p CoS Prioritization, IEEE 802.1Q VLAN, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.1X-Rev,IEEE 802.11, IEEE 802.1ab (LLDP), IEEE 802.3ad, IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports ; IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX ; IEEE 802.3ab 1000BASE-T ; IEEE 802.3z 1000BASE-X ; RMON I and II standards ; SNMP v1, v2c, and v3
Environment	Operating temperature up to 5000 ft (1500 m) : 23ºF to 113ºF (-5ºC to +45ºC) ; Operating temperature up to 10,000 ft (3000 m) : 23ºF to 104ºF (-5ºC to +40ºC) ; Short-term exception at sealevel with single fan failure : 23ºF to 113ºF (-5ºC to +45ºC) ; Short-term exception up to 5000 feet (1500 m) : 23ºF to 122ºF (-5ºC to 50ºC) Short-term exception up to 10,000 feet (3000 m) : 23ºF to 113ºF (-5ºC to 45ºC)
Advanced Features	EEM,RPS Support , Jumbo Frames , VLANS ,Voice Vlan ,VTPv2 ,CDPv2 ,LLDP , 802.3ad LACP and PAgP, PVST/PVST+ , 802.1W/802.1S ,Port Fast/Uplink Fast , Dynamic Trunking Protocol (DTP) , port CoS Trust, and Override , Trusted Boundary , ACL Classification ,ingress Policing , Auto QoS , Per VLAN policies , 802.1p queues , Scheduling , Priority Queuing , Configure CoS Priority Queues , Configure CoS Priority, Queues , Configure Queue Weights , Configure Buffers and Thresholds ,Class & Policy Maps , Modify CoS, and DSCP Mapping , Weighted Tail Drop , IGMPv1,v2,v3 and MLDv1, v2 ; DHCP server , DSCP transparency, HSRP, VRRP, BLGP ; RIPv1, v2 EIGRP, PIM OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4 ; VRF-lite , PIM-SM/DM,PIM sparse-dense mode, SSM ● Flexible Netflow

Review is not available now!

To download flyer, brochure or specification of CISCO CATALYST 3850 24 PORT 10G, FIBER SWITCH IP BASE , click the on the buttons. (All documents are pdf format)
