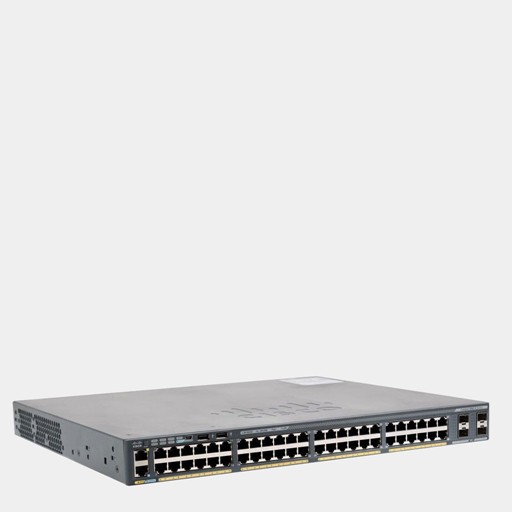

Cisco Catalyst 2960X-48FPS-L Switch

This product has 30 review(s) Add Review
Availability: Pre-order Product
Part no # WS-C2960X-48FPSL

WS-C2960X-48FPS-L belongs to the Cisco Catalyst 2960-X Series Switches, this switch is best for fresh level business, mid-market, and branch office networks. Size of the business can be small to medium sized for this switch.

Corporate/Service Product

Every minute an employee waits for an unresponsive application – and every minute your network is down – has an impact on your bottom line. The importance of maintaining a strong and dependable business network only grows as your business adds more employees, applications, and network complexity. When your business needs advanced security and features but value is still a top consideration, you’re ready for the new generation of Cisco® Small Business managed switches: The Cisco 350X Series.

Country of Origin USA
Model WS-C2960X-48FPSL
Software Type IOS LAN BASE
WAN/LAN Ports 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Ethernet/RJ-45 Ports 48 x 10/100/1000 Ethernet Gigabit ports
SFP/Uplink Port 4 x 1G SFP
Support PoE Max PoE+ Ports : 24 ports up to 30W ; Max PoE Ports : 48 Ports up to 15.4W
Bandwidth Stack bandwidth : 80G ; Switching Bandwidth : 216Gbps
Forwarding Rate 107.1Mpps
MAC Address 16K (default)
VLAN Maximum active VLANs : 1023
Memory 512 MB ; Flash Memory : 128 MB
Jumbo Frames 9,216 byte
MTBF 232,610 hrs
Power AC 120/230 V ( 50/60 Hz )
Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Protocol Remote Management Protocol : SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI
Address Book Capacity MAC Address Table Size : 16,000
Environment Min Operating Temp (up to 5,000 ft) : 23° F ;Max Operating Temp (up to 5,000 ft) : 113° F ; Operating Humidity : 10 to 95% noncondensing ;Min Storage Temperature (up to 15,000 ft) : -13° F ;Max Storage Temperature (up to 15,000 ft) : 158° F ;Storage Humidity : 10 to 95% noncondensing
Certification NERGY-MGT-100-K9, EW-DO-100-DE
Form Factor Desktop, Rack Mountable
Control Panel Status Indicators : Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed
Safety Network Security : SSH, SSL and SCP, RADIUS and TACACS+ , SNMPv3 crypto , 802.1x , 802.1x Accounting / MIB , 802.1x w/ port security, 802.1x w/Voice VLAN, 802.1x Guest VLAN, 802.1x VLAN assignment , 802.1x MAC-Auth Bypass, BPDU/Root Guard, Port Security, Private VALN Edge, Storm Control, Block unknown unicast and multicast, IGMP Snooping, IGMP Filter/Throttle
Weight 5.8 kg
Dimension (WxDxH) 44.5 x 36.8 x 4.5 cm
Review is not available now!
To download flyer, brochure or specification of Cisco Catalyst 2960X-48FPS-L Switch , click the on the buttons. (All documents are pdf format)
Flyer
Brochure

Every minute an employee waits for an unresponsive application – and every minute your network is down – has an impact on your bottom line. The importance of maintaining a strong and dependable business network only grows as your business adds more employees, applications, and network complexity. When your business needs advanced security and features but value is still a top consideration, you’re ready for the new generation of Cisco® Small Business managed switches: The Cisco 350X Series.
