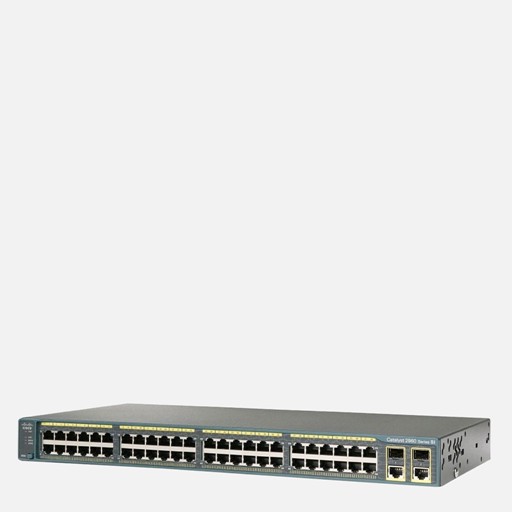

Catalyst 2960 Plus 48 Port 10/100 + 2 T/SFP LAN Lite
The Cisco® Catalyst® 2960-Plus Series Switches are fixed-configuration Fast Ethernet switches (Figure 1) that provide enterprise-class Layer 2 switching for branch offices, conventional work spaces, and infrastructure applications. They enable reliable and secure operations with lower total cost of ownership through a range of Cisco IOS® software features, including Cisco Catalyst Smart Operations.
| Country of Origin | USA |
| Model | 2960 Plus |
| Software Type | LAN Lite |
| WAN/LAN Ports | Cisco Catalyst 2960+ 48 Port 10/100 LAN Lite |
| Ethernet/RJ-45 Ports | CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45 |
| SFP/Uplink Port | 2 (SFP or 1000BASE-T) |
| Support PoE | 48 ports |
| Bandwidth | Forwarding: 16Gbps |
| Forwarding Rate | 10.1 Mpps (64-Byte L3 Packets) |
| Switching Capacity | 16 Gbps |
| MAC Address | 8000 |
| VLAN | Maximum active VLANs: 64 |
| Memory | Flash Memory: 64 MB, DRAM: 128 MB |
| Jumbo Frames | 9018 bytes |
| MTBF | Sound Pressure dBA (LpA: 33dB, LpAD: 36dB, Sound Power, dbA (LwA: 43, LwAD: 46B) In thousand of hour: 623 |
| Power | Voltage: 100 and 240V AC, DC: 2A at 12V, Current Amperes : 0.6 - 0.3, Power Rating (kVA): 0.04, Power Consumption: ATIS weighted average: 29.8 |
| Standards | IEEE 802.1D Spanning Tree Protocol, IEEE 802.1p CoS Prioritization, IEEE 802.1Q VLAN, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.1ab (LLDP), IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah (100BASE-X single/multimode fibe only), IEEE 802.3x full duplex on |
| Cabling Type | Console cable 6 ft with RJ45 |
| Control Panel | Per-port status: Link integrity, disabled, activity, speed, and full duplex, System status, Port Status, RPS, link duplex, PoE, and link speed Console. Power cable restraining clip |
| Safety | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, Immunity: EN55024, CISPR24, EN3000386, KN24, Environmental:Reduction of Hazardous Substances (RoHS) including Direc |
| Environment | Operating: -5ºC to 45ºC, Storage: -25º to 70ºC, Opearting altitude: up to 10,000 Feet, Storage altiture: Upto 13,000, Humidity: Operating & Storage: 10% to 95% noncondensing |
| Weight | 3.6kgs |
| Dimension | 1.73 x 17.70 x 9.52 (inches) |
| Warranty | As long as the original end user continues to own or use the product |
The Cisco® Catalyst® 2960-Plus Series Switches are fixed-configuration Fast Ethernet switches (Figure 1) that provide enterprise-class Layer 2 switching for branch offices, conventional work spaces, and infrastructure applications. They enable reliable and secure operations with lower total cost of ownership through a range of Cisco IOS® software features, including Cisco Catalyst Smart Operations.
