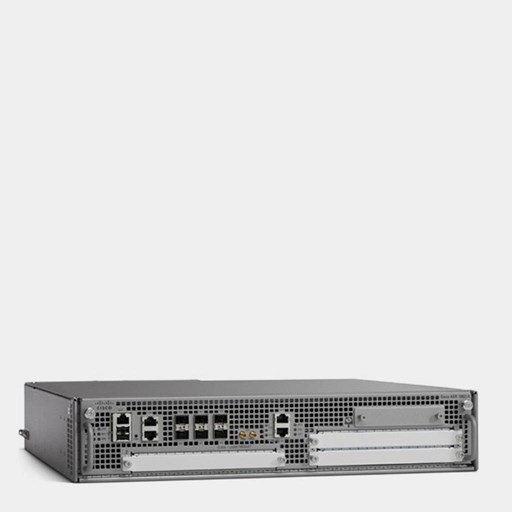

Cisco ASR1002-X Aggregation Service Router

This product has 30 review(s) Add Review
Availability: Pre-order Product
Part no # ASR1002-HX

Cisco ASR 1002-X router is delivered into 2 rack unit chassis, the route processor for control plane embedded the services processor for data plane traffic as well as the carrier card which is designed to house I/O modules.

Corporate/Service Product

ASR 1002-X router comes with 6 build-in SFP ports and 3 box slots for I/O connectivity. The integrated embedded service processors offer 4 levels of system performance: 5Gbps which is default, 10, 20, 36Gbps all through software license upgrade without need for any additional hardware. The integrated the route processor comes by default with 4Gb DRAM, upgradeable to 8, 16Gb.

Country of Origin USA
Model ASR1002-HX
SFP/Uplink Port 6 x SFP ports
Doublewide EHWIC Slots Built-in 6x1GE SPA in slot 0
ISM Slots Cisco ASR 1000 Series ESP : 1 ESP slot
USB Console Port DRAM Memory : 4GB-shared across RP, ESP, and SIP ; Flash Memory : 8 GB
Routing Router Processor (RP) : Dual-core 2.13Ghz processor
Standards EMC standards : Same as for Cisco ASR 1001-X
Safety UL60950-1 CSA C22.2 No. 60950-1-03 EN 60950-1 IEC 60950-1 AS/NZS 60950.1
Environment Operating temperature (nominal) :32 to 104°F (0 to 40°C) ; Operating temperature (short-term) : 32 to 122°F (0 to 50°C) ; Operating humidity (nominal) (relative humidity) : 10 to 85% ; Operating humidity (short-term) : 5 to 90% ; Storage temperature : -40 to 150°F (-40 to 70°C) ; Storage humidity (relative humidity) :5 to 95% ; Operating altitude : -500 to 10,000 feet (152 to 3048 meters)
System Requirements System Bandwidth : 5G (default) / 10G, 20G,36G (upgrade)
Review is not available now!
To download flyer, brochure or specification of Cisco ASR1002-X Aggregation Service Router , click the on the buttons. (All documents are pdf format)
Flyer

ASR 1002-X router comes with 6 build-in SFP ports and 3 box slots for I/O connectivity. The integrated embedded service processors offer 4 levels of system performance: 5Gbps which is default, 10, 20, 36Gbps all through software license upgrade without need for any additional hardware. The integrated the route processor comes by default with 4Gb DRAM, upgradeable to 8, 16Gb.
