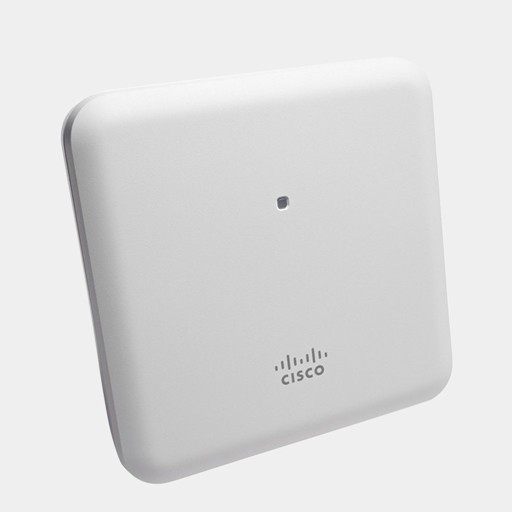

AIR-AP2802I-C-K9 is one of the Cisco Aironet 2800 Series Access Points.
This 2800 series, delivering new 802.11ac Wave 2 standard, is ideal for large enterprise organizations that rely on Wi-Fi to engage with customers. The Series is a hands-off product that’s intelligent enough to make decisions based on end-device activities and usage. AIR-AP2802I-C-K9 provides internal antenna and C regulatory domain.
| Country of Origin | USA |
| Model | CISCO AIRONET 2802I |
| Ports | Console port, USB port, AUX / Gigabit Ethernet port, PoE / mGig port, 48 VDC power port |
| Supported Softwares | Cisco Unified Wireless Network Software Release 8.2.111.0 or laterCisco IOS®XE Software Release 16.3 |
| 802.11n Version 2.0 | 4x4 MIMO with three spatial streamsMaximal ratio combining (MRC)802.11n and 802.11a/g beamforming20- and 40-MHz channelsPHY data rates up to 450 Mbps (40 MHz with 5 GHz)Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)802.11 dynamic frequency selection (DFS)Cyclic shift diversity (CSD) support |
| Antennas | Internal Antenna |
| Interface | 2802I/E ◦ 2x100/1000BASE-T autosensing (RJ-45) Management console port (RJ-45)USB 2.0 (enabled via future software) |
| Wireless Technology | Yes |
| Supported Wireless LAN Controllers | Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst®6500 Series Switches |
| LED Indicator | Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
| Frequency | C (C regulatory domain): - 2.412 to 2.472 GHz; 13 channels - 5.745 to 5.825 GHz; 5 channels |
| Environment | Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)Nonoperating (storage) altitude test: 25˚C, 15,000 ft.Operating temperature: 32° to 104°F (0° to 40°C)Operating humidity: 10% to 90% (noncondensing)Operating altitude test: 40˚C, 9843 ft |
| Power | 802.3at PoE+, Cisco Universal PoE (Cisco UPOE®)802.3at power injector (AIR-PWRINJ6=); Power Draw : 26W at the PSE with all features enabled except for the USB 2.0 port30W at the PSE with the USB 2.0 port enabled |
| Memory | 1024 MB DRAM - 256 MB flash |
| Weight | 3.53 lb (1.6 kg) |
| Dimension | (W x L x H) 8.66 x 8.68 x 2.17 Inch |
| Warranty | Limited Lifetime Hardware Warranty |
This 2800 series, delivering new 802.11ac Wave 2 standard, is ideal for large enterprise organizations that rely on Wi-Fi to engage with customers. The Series is a hands-off product that’s intelligent enough to make decisions based on end-device activities and usage. AIR-AP2802I-C-K9 provides internal antenna and C regulatory domain.
