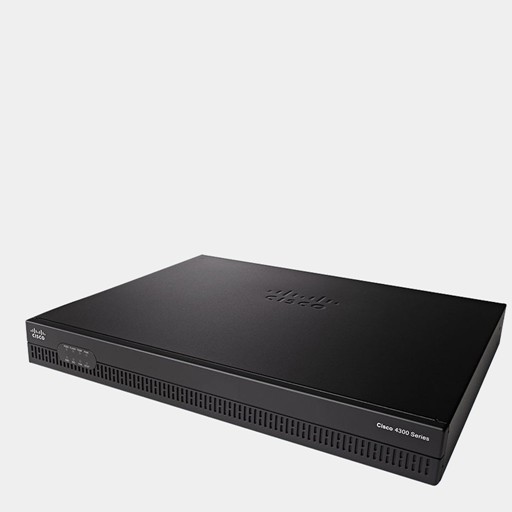

Cisco 4321 Integrated Services Router

This product has 30 review(s) Add Review
Availability: Pre-order Product
Part no # ISR4321-AX-K9

ISR4321-AX/K9 intelligent WAN bundle combines security features, application experience and Wide Area Application Services (WAAS) features together into one platform.

Corporate/Service Product

The intelligent WAN bundle optimizes network traffic across the “best” link based on applications and monitors network conditions to deliver the best performance as possible. In this platform, you get tight control over application performance, bandwidth usage, data privacy, and availability of your WAN links - control that you need as your branches conduct greater volumes of mission-critical business.ISR4321-AX/K9 comes with IP base image, Security, AppX licensing for 200 TCP connection resources for ISR WAAS optimization and 4-GB DRAM, 4GB Flash memory, 50Mbps WAN bandwidth by default, to enable the ISR WAAS service, update memory, flash memory and hard drive is required, vWAAS service is not available on this platform.

Country of Origin USA
Model Cisco ISR4321-AX/K9
Ethernet/RJ-45 Ports 2 RJ-45-based ports
WAN 10/100/1000 Port 2 onboard WAN or LAN 10/100/1000 ports
SFP/Uplink Port 1
NIM Slots 2
Onboard ISC Slot 1
DRAM Maximum memory DDR3 ECC DRAM 8 GB
Memory 4 GB (installed) / 8 GB (max) - DDR3 SDRAM
Throughput 50 Mbps to 100 Mbps
Remote Management Protocol over RMON, SNMP
Power 100 to 240 VAC Autoranging ; AC input frequency : 47 to 63 Hz ; AC input current range, AC power supply (maximum) : 1.5 to 0.6A
Protocol Networking Protocol: DHCP, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.1ag, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ah, IGMP v3, IPSec, OSPF, RIP ; Remote Management Protocol: RMON, SNMP ; Transport Protocol: DHCP, IPSec, L2TPv3, PPPoE
Advanced Features Contents : router, rack mounting kit, software, documentation
System Requirements Supports DHCP, Ethernet, Fast Ethernet, Gigabit Ethernet, IGMP v3, IPSec, OSPF, RIP, IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag Networking
Review is not available now!
To download flyer, brochure or specification of Cisco 4321 Integrated Services Router , click the on the buttons. (All documents are pdf format)
Flyer

The intelligent WAN bundle optimizes network traffic across the “best” link based on applications and monitors network conditions to deliver the best performance as possible. In this platform, you get tight control over application performance, bandwidth usage, data privacy, and availability of your WAN links - control that you need as your branches conduct greater volumes of mission-critical business.ISR4321-AX/K9 comes with IP base image, Security, AppX licensing for 200 TCP connection resources for ISR WAAS optimization and 4-GB DRAM, 4GB Flash memory, 50Mbps WAN bandwidth by default, to enable the ISR WAAS service, update memory, flash memory and hard drive is required, vWAAS service is not available on this platform.
