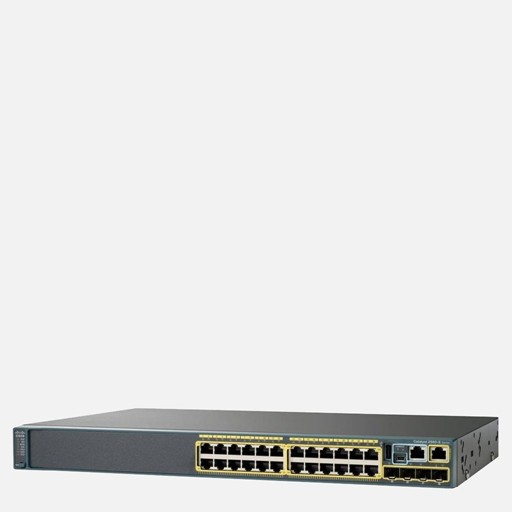

Cisco 24 Port 2960X PoE Switch (Lan Base)

This product has 30 review(s) Add Review
Availability: Pre-order Product
Part no # WS-C2960X-24PS-L

Cisco delivers a comprehensive portfolio of switching solutions for Enterprise Networks, data centers, and smaller businesses and the public sector.

Corporate/Service Product

Cisco® Catalyst® 2960-X Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS® Software features.

Country of Origin USA
Model 2960-X
Software Type LAN Base
WAN/LAN Ports Cisco Catalyst 2960X 24 Port 10/100/1000 Switch LAN
Ethernet/RJ-45 Ports USB (Type-B), Ethernet (RJ-45)
SFP/Uplink Port LAN Base with 4 SFP Uplink
Support PoE 12 ports up to 30W, 24 ports up to 15.4W
Bandwidth Forwarding: 50 Gbps, Switching: 100 Gbps
Forwarding Rate 71.4 Mpps (64-Byte L3 Packets)
MAC Address 16K
VLAN Maximum active VLANs: 64
Memory Flash Memory: 128 MB, DRAM: 512 MB
Jumbo Frames 9216 bytes
MTBF Fanless Quiet Cool 24-Port PoE Switch, Sound Pressure dBA (LpA: 39dB, LpAD: 43dB, Sound Power, dbA (LwA: 4.9B, LwAD: 5.3B) In thousand of hour: 324,280
Power Voltage: 100 to 240 VAC, Current: 1A - 0.5A, Frequency: 50 to 60Hz,Avaiable PoE Power: 370W, Power Rating: 0.46KVA,Power Consumption: ATIS weighted average: 44.4
Standards IEEE 802.1D Spanning Tree Protocol, IEEE 802.1p CoS Prioritization, IEEE 802.1Q VLAN, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.1ab (LLDP), IEEE 802.3ad, IEEE 802.3af and IEEE 802.3at, IEEE 802.3ah (100BASE-X single/multimode fiber only), IEEE 802.3
Cabling Type UTP
Control Panel Per-port status: Link integrity, disabled, activity, speed, and full duplex, System status: System, RPS, Stack link status, link duplex, PoE, and link speed
Safety UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, Immunity: EN55024, CISPR24, EN300386, KN24, Environmental: Reduction of Hazardous Substances (RoHS) including Direc
Environment Operating: -5ºC to 45ºC, Storage: -25º to 70ºC, Opearting altitude: up to 10,000 Feet, Storage altiture: Upto 13,000, Humidity: Operating & Storage: 10% to 95% noncondensing
Weight 5.8 kg
Dimension 1.75 x 14.5 x 17.5 (inches)
Warranty As long as the original end user continues to own or use the product.
Review is not available now!
To download flyer, brochure or specification of Cisco 24 Port 2960X PoE Switch (Lan Base) , click the on the buttons. (All documents are pdf format)
Flyer
Brochure

Cisco® Catalyst® 2960-X Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS® Software features.
