High performance, intuitive usability, versatile finishing.

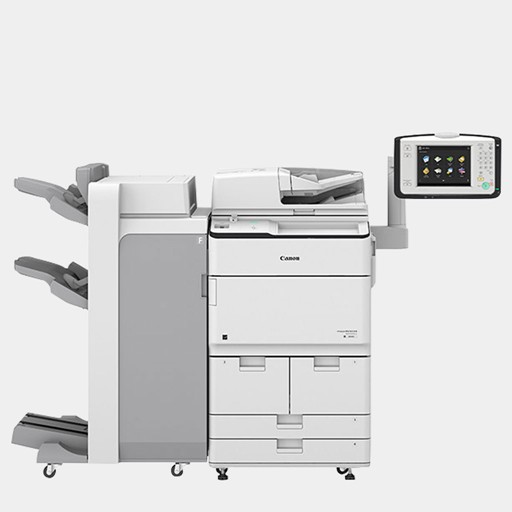

Designed for advanced functionality, high reliability and ease of operation, the imageRUNNER ADVANCE 8505 series offers personalisation and other intelligent features necessary to meet the needs of diverse environments as well as workflow requirements of individual users.
| Copier Type | Monochrome Laser Multifunctional Printer |
| Functions | Print, Copy, Scan, Send, Store and Optional Fax |
| Speed | Print: up to 105ppm in black-and-white; Scan: 240/220 ipm (300 dpi)(B/W,Colour,duplex) |
| Resolution | Print: Up to 1,200 dpi x 1,200 dpi, Copy: Reading : Up to 600 dpi x 600 dpi |
| Processor | Canon Dual Custom Processor (Shared) |
| Memory | Standard : 3.0GB RAM |
| Hard Disk Drive | Standard: 250GB, Maximum: 1TB |
| Warm-Up Time | Approx. 2.7 seconds or less |
| Recovery from Sleep Mode | 60 Seconds or Less |
| First Page Out Time | Approx. 2.7 seconds or less |
| Duplex Print | Automatic (Standard) |
| Feeding Capacity | 1,500 sheets x 2 paper cassettes + 550 sheets cassettes x 2 cassettes (80gsm); 100 sheets Multi-purpose tray (80gsm) |
| Media Type | Thin paper, Plain paper, Recycled paper, Colour paper, Heavy paper, Pre-punched paper, Letterhead, Bond paper, Tab paper, Transparency, Labels, Clear Film, Tracing |
| Media Size | Upper Left/Right Cassettes(1/2): Standard size: A4; Lower Cassettes (3/4): Standard size: 330 mm x 483 mm, 320 mm x 450 mm; (SRA3), 305 mm x457 mm, A3, A4, A4R, A5R; Custom size: 139.7 mm x 182 mm to 330.2 mm x 487.7 mm; Multi-purpose tray: Standard size: 330 mm x 483 mm, 320 mm x 450 mm; (SRA3), 305 mm x 457 mm, A3, A4, A4R, A5R; Custom size: 100 mm x 148 mm to 330.2 mm x 487.7 mm; Free size: 100 mm x 182 mm to 330.2 mm x 487.7 mm |
| Media Weight | Cassettes: 52 to 220gsm; Stack Bypass: 52 to 256gsm; Duplex: 52 to 220 gsm |
| Multiple Copies / Prints | Up to 9,999 copies |
| Zoom Rate | Magnification 25% - 400% (1% Increments); Preset Reductions 25%, 50%, 64%, 73%, 78%; Preset Enlargements 121%, 129%, 200%, 400% |
| Scanner Type | Colour flatbed scan unit and 300-sheet duplex automatic document feeder (1-Pass duplex colour scan) |
| Fax Features | Optional on all models |
| Modem Speed | Super G3 : 33.6 kbps, G3: 14.4 kbps |
| Speed Dial | Max. 200, Group Dials: Max. 199 dials |
| Address Book Capacity | LDAP (2,000)/Local (1,600)/Speed dial (200) |
| Compression Method | MH, MR, MMR, JBIG |
| Network Interface | Network Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n); Optional: NFC; Others Standard: USB 2.0 x2 (Host), USB 3.0 x 1 (Host), USB 2.0 x1 (Device); Optional: Serial Interface,Copy Control Interface |
| Control Panel | 10.4 inch TFT LCD SVGA Color Touchpanel |
| Compatible Accessories | Server 2003/Server 2003 R2Vista/Server 2008/ Windows 7/Server 2008 R2/Windows 8/Server 2012/Windows 8.1/Server 2012 R2/Windows 10, MAC OS X (10.5.8 or later) |
| Security | Network : IP/Mac Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP, Authentication, POP Authentication before SMTP, Document: Secure Print, Adobe LiveCycle® Rights Management, ES2.5 Integration,Encrypted PDF |
| Power | 220-240V(±10 %) , 50/60Hz (±2 Hz) , 10Amp |
| Environment | Temperature: 10 to 30 ºC (50 to 86 ºF), Humidity: 20 to 80 % RH (no condensation) |
| Power Consumption | Maximum: Approx. 2.4 KW, Standby: Approx. 222 W, Energy Saver Mode: Approx. 193 W, Sleep mode: Approx. 0.9 W or less |
| Interface | Standard: USB 2.0 (Host) x2, USB 3.0 (Host) x1, USB 2.0 (Device) x1; Optional: Serial Interface,Copy Control Interface |
| Dimension | 1,481mm x 770 mm x 1,252 mm |
| Weight | Approx. 240kg |
Designed for advanced functionality, high reliability and ease of operation, the imageRUNNER ADVANCE 8505 series offers personalisation and other intelligent features necessary to meet the needs of diverse environments as well as workflow requirements of individual users.
