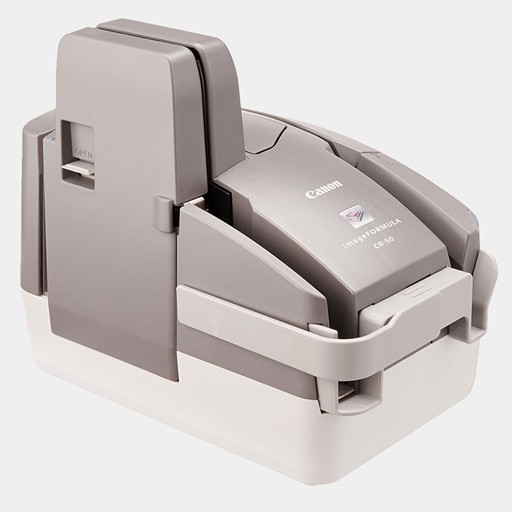

The compact, front-counter Canon ImageFORMULA CR-50/80 capture MICR data with images of front and back of chesk at 50-80 speed per minute.
With the ideal combination of functionality, size, and speed, the Canon imageFORMULA CR-50 check reader excel in front counter or remote capture environments. Each model offers unmatched image quality and reliability for check capture at the first point of presentment.
Product Type | Sheetfed Tyep Check scanner |
Technology | MICR: E13B/CMC-7; OCR: E13B/OCR-A/OCR-B |
Document Feeding | Automatic sheet feeding |
Media Thickness | Document Thickness and weight: Normal: 60-120 g/m (0.08-0.20mm, 16-32lb bond); Infrared double feed detection ON .81-105 g/m; 0.10-0.14 mm, 22-28 lb bond); Width: 54-108 mm (2.13-4.25in); Length: 80-228mm (3.15-8.98in); |
Feeding Capacity | Maximum 50 sheets or 5 mm (0.2 in) stack height |
Scan Features | Methods: CMOS CIS |
Light Source | LED (Red, Green and Blue) |
Duplex Print | Simplex/Duplex |
Scanning Modes | Black and White, Fine Text tiltering, Error diffusion; 4 bit Grayscale, 8 bit Grayscale; 21 bit color |
Speed | 200 dpi, Black and White/Grayscale: 50 cpm, Color: 20 cpm; 300 dpi, Black and White/Grayscale: 20 cpm |
OS Compatibility | Windows XP 32bit (SP3), 64 bit (SP2), Windows Vista 32bit/64bit (SP2), Windows7 32 bit/64 bit (SP1) |
Interface | Hi-Speed USB 2.0 |
Advanced Features | Infrared double feed detection, Built in imprinting, Ink level alarm, Four line and dynamic add on |
Power | AC 120V (60Hz), AC 220-240V (50/60Hz); |
Power Consumption | Scanning: Less than 21W, Sleep Mode: Less than 5W |
Environment | 10ºC-32.5ºC (50ºF-90.5ºF), Humidity: 20%-80% RH |
Dimension | WxDxH: Tray Closed: 140x223x188mm (5.5x8.8x7.4 in); Tray opened: 140x367x188mm (5.5x14.4x7.4 in) |
Weight | Approx. 2 kg (4.4 lb.) without AC Adapter |
Supported Consumables | Ink Cartridge (for imprinter) |
With the ideal combination of functionality, size, and speed, the Canon imageFORMULA CR-50 check reader excel in front counter or remote capture environments. Each model offers unmatched image quality and reliability for check capture at the first point of presentment.
