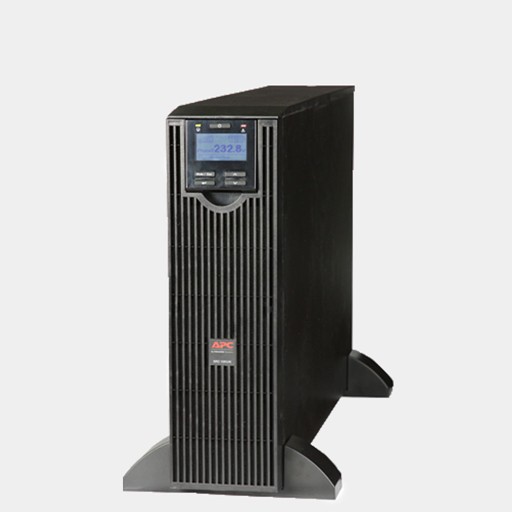

Smart-UPS™ On-line provides high-density, true, double conversion, online power protection for servers, voice/data networks, medical labs, and light industrial applications. It’s capable of supporting loads from 1 to 10 kVA in a rack/tower convertible form. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-line can be configured with matching battery packs to comply with aggressive runtime demands.
| Country of Origin | USA |
| Topology | Double Conversion Online |
| Capacity | 10000VA, Output Power : 8000 W |
| Input Voltage | 230V (Nominal) |
| Output Voltage | 230 V (Configurable for 220 : 230 or 240 nominal output voltage) (Nominal), Distortion: Less than 3%, Regulation: +/-1% static, 5% dynami |
| Frequency | Input : 45 - 65 Hz (auto sensing), Output: 47 - 63 Hz |
| Input Connection | (1) Hard Wire 3-wire (H N + G) |
| Output Connection | (1) Hard Wire 3-wire (H N + G) |
| Voltage Range | 100 - 280V (DC: 240VDC) |
| Input/Output Current (Nominal) | 650 |
| Efficiency | 90% at full load |
| Product Size | No internal battery - uses external battery system |
| Backup Time | Depends On Battery Bank |
| Interface | DB-9 RS-232,SmartSlot |
| Control Panel | LCD Display |
| Power Factor | Input : >.95 |
| Crest Factor | 3:01 |
| Bypass | Internal Bypass (Automatic) |
| Noise Level | < 55 dB |
| Approvals | EN 60950,EN/IEC 62040-2 |
| Warranty | 1 year |
Smart-UPS™ On-line provides high-density, true, double conversion, online power protection for servers, voice/data networks, medical labs, and light industrial applications. It’s capable of supporting loads from 1 to 10 kVA in a rack/tower convertible form. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-line can be configured with matching battery packs to comply with aggressive runtime demands.
