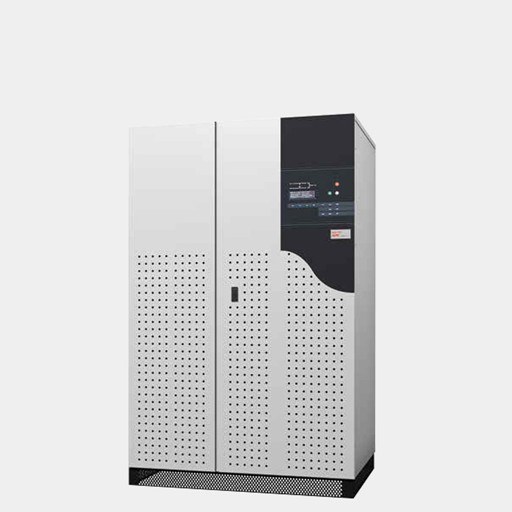

APC MGE Galaxy PW 30KVA

Performance 3 Phase Power Protection with Adaptability to Meet the Unique Requirements of Small to Medium Datacenters Building and Facilities, Enterprise Networks, Process &Infrastructures, Telecom.

Country of Origin	USA
Capacity	30KVA
Input Voltage	380-400-415 V +/- 10% - three-phas (adjustable to +/- 15%) (nominal)
Output Voltage	380-400-415V +/-1% Three Phase + Neutral
Frequency	Input : 50 or 60 Hz+/- 10%, Distortions: <4% with THM filter, Output: 50 or 60 Hz + -0.05% adjustable
Efficiency	Double Conversion mode: up to 90% , ECO mode : up to 97%
Product Size	Sealed lead-acid battery (service lfie 10 to 12 years)
Battery Mounting	8,10,15,20,30,60 minutes, other values on request
Backup Time	30 Min at full load
Overload Capacity	150% 1 minute 125% 10 minutes
Power Factor	Up to 0.96 with THM filter
Crest Factor	3 : 1
Bypass	input : voltage- 380-400-415+/- 10% three-phase+neutral, Frequency : 50 or 60 HZ+/- 10%
Warranty	1 Year

Review is not available now!

To download flyer, brochure or specification of APC MGE Galaxy PW 30KVA , click the on the buttons. (All documents are pdf format)

Specification

Performance 3 Phase Power Protection with Adaptability to Meet the Unique Requirements of Small to Medium Datacenters Building and Facilities, Enterprise Networks, Process &Infrastructures, Telecom.
