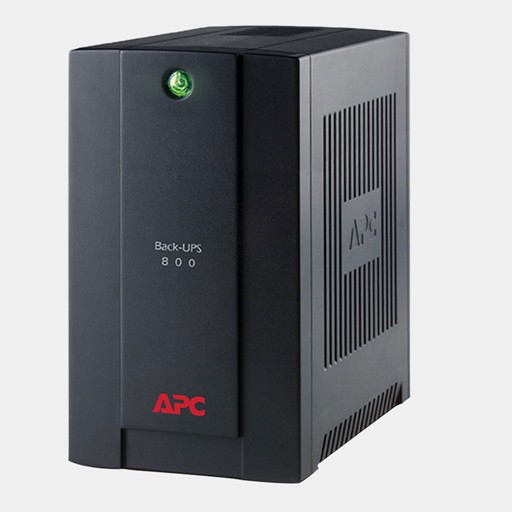

Battery Backup & Surge Protector for Electronics and Computers
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
| Topology | Line Interactive |
| Capacity | 800VA |
| Input Voltage | Nominal : 230V |
| Output Voltage | Nominal : 230V |
| Frequency | Output : 50/60 Hz +/-1 Hz |
| Input Connection | IEC-320 C14, NEMA 5-15P |
| Recharge Time | 6hour(s) |
| Transfer Time | 4ms typical : 6ms maximum |
| Control Panel | LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
| Waveform Type | Stepped approximation to a sinewave |
| Surge Energy Rating | 273Joules |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Approvals | CE, WEEE |
| Dimension | (HxWxD) 200x115x256MM |
| Weight | 6.5 kg |
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
