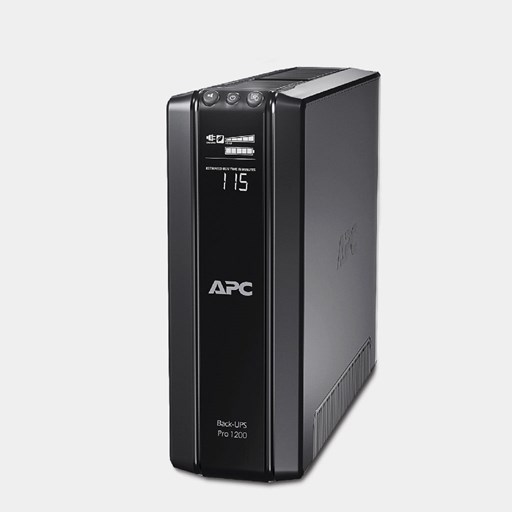

High Performance Computer and Electronics UPS for Premium Power Protection
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
| Topology | Line interactive |
| Capacity | 1200VA |
| Input Voltage | 230V |
| Output Voltage | 230V |
| Frequency | 50/60 Hz +/- 3 Hz Auto-sensing |
| Frequency Regulation | 156 - 300 Adjustable, 176 - 294V |
| Input Connection | IEC 60320 C14 |
| Output Connection | IEC 60320 C13 (Battery Backup) , IEC 60320 C13 (Surge Protection), IEC Jumpers (Battery Backup) |
| Voltage Range | 156 - 300 Adjustable, 176 - 294V |
| Nominal Voltage | 24 V |
| Battery Mounting | Battery Charge Power (Watts) : 23 Watts ; Battery Volt-Amp-Hour Capacity : 216 |
| Recharge Time | 8hour(s) |
| Interface | Optional Simple Signalling RS232 cable, USB |
| Data Line Surge Protection | RJ11 analog phone line for phone/fax/modem/DSL, RJ45 network line - 10/100/1000 Base-T Ethernet |
| Transfer Time | 10 ms typical : 12 ms maximum |
| Control Panel | Multifunction LCD status and control console |
| Waveform Type | Stepped approximation to a sinewave |
| Environment | Operating Temperature : 0 - 40 °C ; Operating Elevation : 0 - 9144meters ; Storage Temperature : -15 - 45 °C ; Storage Elevation : 0 - 15240meters |
| Relative Humidity | Operating Relative Humidity : 0 - 95 % ; Storage Relative Humidity : 0 - 95 % |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Noise Level | 45.0dBA |
| Approvals | A-Tick, C-Tick, CE, GOST, GS Mark, Telepermit, TÜV |
| Body Color | Black |
| Dimension | (HxWxD) 301x112x380mm |
| Weight | 11.6KG |
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
