A small power UPS of KSTAR, the output factor is 0.9, and power range is from 1kVA to 3kVA. When UPS is on battery mode, it can shut down unnecessary load and extend the backup time of the critical load .

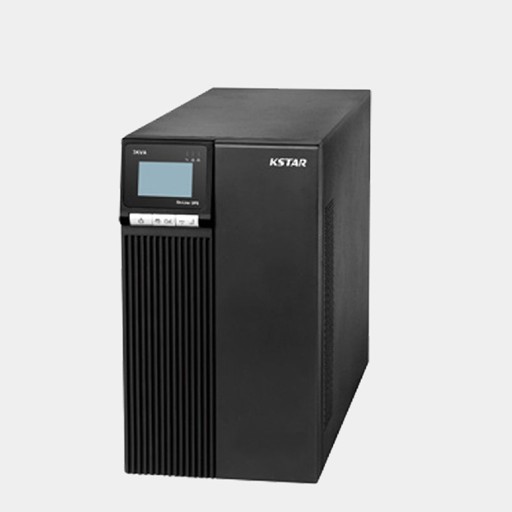

Winner 3kVA is new generation small power UPS of KSTAR, both input and output are single phase, the output factor is up to 0.9.When UPS is on battery mode, it can shut down unnecessary load and extend the backup time of the critical load.
| Capacity | 3KVA |
| Frequency | 45~55Hz/55~65Hz (Auto-detect) |
| Backup Time | Estimated remaining time displayed on the LCD |
| Waveform Type | Modified Sine Wave |
| Power Factor | ≥0.99 @Nominal voltage(100% load) |
| Relative Humidity | 20~90% RH @ 0~40℃ (Non-condensing) |
| Alarm | Battery Mode : Beeping every 4 seconds; Battery Low: Beeping every second; Overload: Beeping twice every second; Fault : Continously beeping PHYSICAL |
| Noise Level | <50db @ 1 Meter |
| Body Color | Black |
| Dimension | W×D×H (mm) 470×191×336 |
| Weight | 24 Kg |
Winner 3kVA is new generation small power UPS of KSTAR, both input and output are single phase, the output factor is up to 0.9.When UPS is on battery mode, it can shut down unnecessary load and extend the backup time of the critical load.
