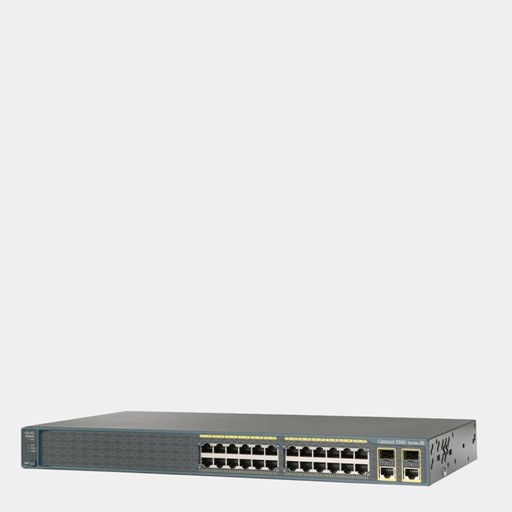

Cisco WS-C2960-24TC-S Ports Switch

This product has 30 review(s) Add Review
Availability: InStock
Part no # WS-C2960-24TC-S

You can upgrade these Fast Ethernet switches to Gigabit Ethernet switches without impairing their functions.

৳ 30,000

The Cisco Catalyst 2960-L Series Switches are ideal for the replacement of the existing Cisco Catalyst Switches, especially Cisco Catalyst 2960-C/SF/S/Plus Series LAN Lite models.

Model WS-C2960-24TC-S Cisco 2960 Switch
WAN/LAN Ports 24 10/100 ports
Ethernet/RJ-45 Ports RJ45 Console Port
SFP/Uplink Port 2 dual-purpose (10/100/1000 or SFP) ports
Throughput 6.5 Mpps
VLAN active VLANs, Value : 64
MTBF 667000 sec
Power Nominal Voltage : AC 120/230 V, Frequency Required : 50/60 Hz, Power Consumption Operational : 18.6 Watt, Type : internal power supply
Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP)
Protocol Remote Management Protocol :HTTP, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, TFTP, Telnet
Environment Humidity Range Storage : 10 - 95% (non-condensing), Min Storage Temperature : -13 °F, Max Storage Temperature : 158 °F, Min Operating Temperature : 23 °F,Max Operating Temperature : 104 °F , Humidity Range Operating : 10 - 95% (non-condensing)
Connectivity
Advanced Features Fan Exhaust, RPS Connector,AC power connector ; ARP support, BOOTP support, LLDP support, Link Aggregation Control Protocol (LACP), MAC Address Notification, Management Information Base (MIB), Multiple Spanning Tree Protocol (MSTP) support, Port Aggregati
Weight 7.94 lbs
Dimension (WxDxH) 17.7 x 9.5 x 1.7 in
Review is not available now!
To download flyer, brochure or specification of Cisco WS-C2960-24TC-S Ports Switch , click the on the buttons. (All documents are pdf format)

The Cisco Catalyst 2960-L Series Switches are ideal for the replacement of the existing Cisco Catalyst Switches, especially Cisco Catalyst 2960-C/SF/S/Plus Series LAN Lite models.
