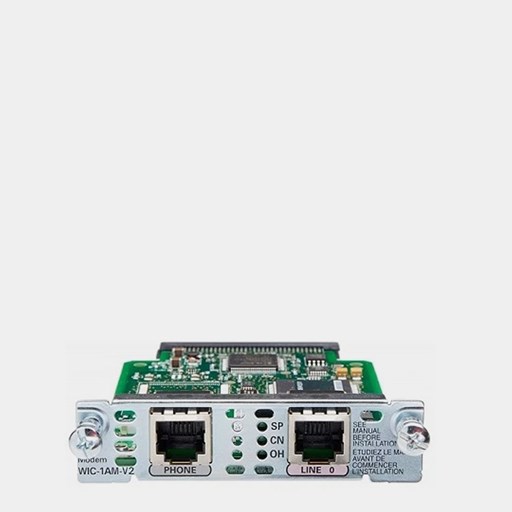

Cisco 1-Port Analog Modem Wan Interface Card

This product has 30 review(s) Add Review
Availability: InStock
Part no # WIC-1AM

This document provides information on the analog modem Wide Area Network (WAN) interface cards (WIC-1AM or WIC-2AM), their product numbers, features, platform support, LEDs, and configuration.

৳ 30,500

The WAN interface cards -1AM and -2AM (WIC-1AM and WIC-2AM) provide one or two internal V.90 analog modems. These WICs can be used for incoming or outgoing analog modem calls. The WIC-2AM features dual RJ-11 connectors, while the WIC-1AM uses one port for connection to a standard telephone line, and the other port to connect to a basic analog telephone for use when the modem is idle.

Product Type Interface Card
Brand Cisco
Ports 1 x phone line - RJ-11 ¦ 1 x phone line - RJ-11
Network Protocols Error Correction Protocol : MNP-4, ITU V.42, MNP-2, MNP-3 ; Data Compression Protocol : MNP-5, ITU V.42bis, ITU V.44
Feature 01 Form factor : Internal
Feature 02 Connectivity Technology : Wired
Feature 03 Max Transfer Rate : 56 Kbps
Feature 04 56K Technology : K56Flex, V.90, V.92
Feature 05 Protocols & Specifications : Bell 103, ITU V.21, Bell 212A, ITU V.22, ITU V.22bis, ITU V.29, ITU V.32, ITU V.32bis, ITU V.34, ITU V.17, ITU V.23, ITU V.27ter, ITU V.34bis, ITU V.33
Feature 06 1 x expansion slot
Review is not available now!
To download flyer, brochure or specification of Cisco 1-Port Analog Modem Wan Interface Card , click the on the buttons. (All documents are pdf format)

The WAN interface cards -1AM and -2AM (WIC-1AM and WIC-2AM) provide one or two internal V.90 analog modems. These WICs can be used for incoming or outgoing analog modem calls. The WIC-2AM features dual RJ-11 connectors, while the WIC-1AM uses one port for connection to a standard telephone line, and the other port to connect to a basic analog telephone for use when the modem is idle.
