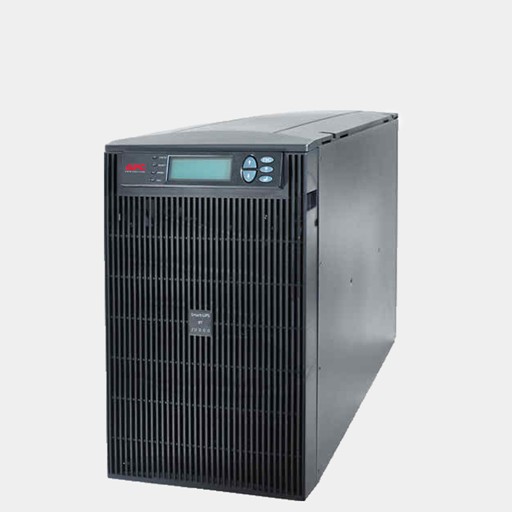

APC SMART UPS 20KVA

This product has 30 review(s) Add Review
Availability: InStock
Part no # SURT20KUXI

Global leader in UPS, server room and battery backup solutions for home office, and business.

৳ 7,20,000

APC Smart-UPS On- Line, 16 kW / 20 kVA, Input 230V / Output 230V , Interface Port DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot , Extended runtime model , Rack Height 6 U.

Country of Origin USA
Topology Double Conversion Online
Capacity 20KVA
Input Voltage 160 - 280V,400V
Output Voltage 230V,Configurable for 400 or 415V 3 Phase nominal output voltage, Distortion: Less than 3%
Frequency Input : 40 - 70 Hz (auto sensing), Output : 50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Input Connection Hard Wire 3-wire (P + N+G) / Hard Wire 5-wire (3PH + N + G)
Output Connection (1) Hard Wire 3-wire (H N + G)
Max Input Current 115A
Efficiency 94% at full load
Product Size Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Backup Time No Internal Battery
Interface DB-9, RS-232,RJ-45 10/100 Base-T,Smart-Slot
AC Power Surge Protection Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Control Panel Multi-function LCD status and control console
Waveform Type Sine wave
Surge Energy Rating 420 Joules
Bypass Internal Bypass (Automatic and Manual)
Alarm Audible and visible alarms prioritized by severity
Noise Level 59.00 dBA
Approvals EN/IEC 62040-2,EN/IEC 62040-1-1
Weight Net: 68.00 KG , Shipping: 90.50 Kgs
Warranty 2 years repair or replace
Review is not available now!
To download flyer, brochure or specification of APC SMART UPS 20KVA , click the on the buttons. (All documents are pdf format)

APC Smart-UPS On- Line, 16 kW / 20 kVA, Input 230V / Output 230V , Interface Port DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot , Extended runtime model , Rack Height 6 U.
