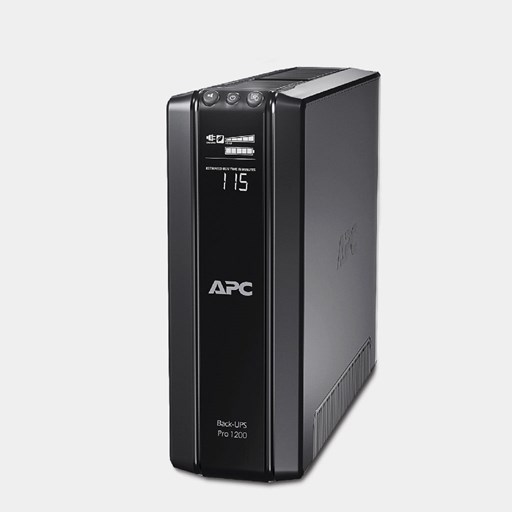

APC Back 1200VA UPS

This product has 30 review(s) Add Review
Availability: InStock
Part no # BR1200GI

High Performance Computer and Electronics UPS for Premium Power Protection

৳ 45,000

Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Topology Line interactive
Capacity 1200VA
Input Voltage 230V
Output Voltage 230V
Frequency 50/60 Hz +/- 3 Hz Auto-sensing
Frequency Regulation 156 - 300 Adjustable, 176 - 294V
Input Connection IEC 60320 C14
Output Connection IEC 60320 C13 (Battery Backup) , IEC 60320 C13 (Surge Protection), IEC Jumpers (Battery Backup)
Voltage Range 156 - 300 Adjustable, 176 - 294V
Nominal Voltage 24 V
Battery Mounting Battery Charge Power (Watts) : 23 Watts ; Battery Volt-Amp-Hour Capacity : 216
Recharge Time 8hour(s)
Interface Optional Simple Signalling RS232 cable, USB
Data Line Surge Protection RJ11 analog phone line for phone/fax/modem/DSL, RJ45 network line - 10/100/1000 Base-T Ethernet
Transfer Time 10 ms typical : 12 ms maximum
Control Panel Multifunction LCD status and control console
Waveform Type Stepped approximation to a sinewave
Environment Operating Temperature : 0 - 40 °C ; Operating Elevation : 0 - 9144meters ; Storage Temperature : -15 - 45 °C ; Storage Elevation : 0 - 15240meters
Relative Humidity Operating Relative Humidity : 0 - 95 % ; Storage Relative Humidity : 0 - 95 %
Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Noise Level 45.0dBA
Approvals A-Tick, C-Tick, CE, GOST, GS Mark, Telepermit, TÜV
Body Color Black
Dimension (HxWxD) 301x112x380mm
Weight 11.6KG
Review is not available now!
To download flyer, brochure or specification of APC Back 1200VA UPS , click the on the buttons. (All documents are pdf format)

Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
